README

Open-source messaging automation for Laravel. Run it as a standalone, self-hosted service or install the complete dashboard and engine into an existing Laravel application with Composer.

The UI includes a draggable React Flow journey builder, behavioural segments, A/B tests, provider configuration, a time-series analytics dashboard, immutable publishing, and per-run timelines.

📚 Full documentation is in docs/ — concepts, guides (journeys, segments, A/B testing, anonymous identity, analytics), the HTTP API reference, and the architecture spec. For deployment see Deploying the backend and PRODUCTION.md.

Choose an installation

Embed it in an existing Laravel application

composer require trigger-engage/server
php artisan engage:install --name="My Product" --timezone=Africa/Lagos

Open /trigger-engage. The package uses the host database, authentication, queue, and scheduler. SDK facade calls are dispatched in-process, so there is no separate Trigger Engage host or API credential to configure. The dashboard is restricted to authenticated host users by default.

Run it as a self-hosted service

composer install
cp .env.example .env && php artisan key:generate
php artisan migrate --seed --seeder=DemoSeeder   # prints demo SDK credentials
php artisan serve
php artisan schedule:work    # wakes delayed runs (or cron: engage:tick every minute)
php artisan queue:work       # if QUEUE_CONNECTION != sync

Open http://localhost:8000/app. The browser uses the same HTTP Basic credential pair as the API: workspace id as username and API key as password. The management UI uses a responsive SaaS-style sidebar with dedicated Overview, Automations, Events, Templates, Channels, and Runs pages. It can create event definitions, message templates, delivery channels, and versioned automations with delay, event-wait, goal, and timeout paths.

See docs/INSTALLATION.md for the full Composer-package and self-hosted installation guide, including authorization, upgrades, worker requirements, and guidance for choosing a deployment mode. Maintainers can use docs/PUBLISHING.md for the ordered SDK/server tagging, archive, and clean-install release checks.

Create a real workspace (prints the SDK credential pair once):

php artisan engage:workspace "My Product" --timezone=Africa/Lagos

Authentication

Every API request authenticates with the combination of workspace id and API key as HTTP Basic auth — workspace id is the username, API key the password. A key is only valid inside the workspace it was issued for. Keys are stored hashed (sha256) and shown once at creation.

API (v1)

Route	Purpose
POST /api/v1/events	Track an event and optionally update its person: {name, person_id?, anonymous_id?, email?, phone?, attributes?, data?, idempotency_key?, occurred_at?} — one of person_id / anonymous_id is required
GET /api/v1/people	Paginated people; optional search and per_page query parameters
GET /api/v1/people/{external_id}	Read a person and their typed custom properties
PUT /api/v1/people/{external_id}	Upsert a person: {email?, phone?, properties?, anonymous_id?}; attributes remains supported. Passing anonymous_id merges that anonymous profile in
PATCH /api/v1/people/{external_id}/properties	Merge typed properties into a person
DELETE /api/v1/people/{external_id}/properties/{key}	Remove one property without deleting the person
DELETE /api/v1/people/{external_id}	Erase a person (GDPR/NDPR)
POST /api/v1/batch	Up to 500 mixed identify/event items as a top-level array; {items: [...]} is also accepted
PUT /api/v1/segments/{segment_id}/people/{external_id}	Add an identified person to a manual segment
DELETE /api/v1/segments/{segment_id}/people/{external_id}	Remove a person from a manual segment

Segments and broadcasts

Segments are reusable audiences, in three flavours (full guide):

• Manual — membership changed explicitly through the API or SDK.
• Event-driven — bound to an event; when that event is accepted, its person is added idempotently.
• Rule-based — a boolean rule over attributes and behaviour (e.g. booked but not attended in 30 days) that recomputes itself as data changes and time passes.

Every workspace also includes a protected All people segment. Existing profiles are backfilled during migration and every new identified or anonymous profile joins it automatically, so a workspace-wide broadcast never needs audience setup.

Event-driven and rule-based membership is computed by the engine and cannot be changed through the manual-membership API.

Broadcasts send one template to a segment over email, SMS, or push. Sending snapshots the current member list into recipient records before queueing delivery, so later membership changes do not change an in-progress campaign. Suppressions and missing destinations are skipped, and every recipient retains a delivery status and message ledger entry. A broadcast draft can only be sent once.

Person properties

Every person has Customer.io-style custom properties stored as typed JSON: strings, numbers, booleans, nulls, arrays, and nested objects. Existing attributes payloads remain supported and are treated as properties. Properties merge on SDK/API calls and can also be managed in the People UI. Templates can read them directly as {{ person.appointments }} or through {{ person.properties.appointments }}.

Automation graphs

{
  "nodes": [
    {"id": "trigger", "type": "trigger", "config": {}},
    {"id": "wait",    "type": "delay",   "config": {"minutes": 60}},        // or days/hours, or {"until_time": "09:00"} in workspace tz
    {"id": "fork",    "type": "branch",  "config": {"field": "event.plan", "operator": "equals", "value": "free"}},
    {"id": "send",    "type": "send_email", "config": {"template_id": 1, "channel_id": 1}},
    {"id": "done",    "type": "exit",    "config": {}}
  ],
  "edges": [
    {"from": "trigger", "to": "wait"},
    {"from": "wait", "to": "fork"},
    {"from": "fork", "to": "send", "branch": "true"},
    {"from": "fork", "to": "done", "branch": "false"},
    {"from": "send", "to": "done"}
  ]
}

Templates use {{ person.* }} and {{ event.* }} variables. Publishing an automation freezes an immutable version; in-flight runs finish on the version they started on. Re-entry policies: every_time, one_active_run_per_person, once_ever_per_person.

Email templates open in a dedicated editor with an exact server-rendered live preview. New and migrated email templates default to the current Mytherapist.ng design: warm paper background, white card and gold ribbon, Plus Jakarta Sans typography, app badges, social links, navy footer, crisis copy, and signed unsubscribe link. Subject, preheader, Liquid/HTML content, sender override, logo, identity, colors, store links, social links, and footer copy are customizable per template. A plain-HTML layout remains available for special-purpose messages. The body composer includes a full visual editor with headings, formatting, lists, alignment, links, buttons, colors, undo/redo and one-click Liquid variables, plus a lossless HTML/Liquid source mode. Final email CSS is inlined for broad client support.

wait_for_event nodes persist until a later event for the same person arrives or their deadline passes. Their two edges use branch: "matched" and branch: "timed_out". Optional match rules correlate an incoming field to the original trigger payload, for example appointment_id to appointment_id. The editor can stop, continue, or send one fallback message on timeout before rejoining the main path.

An automation version can also define a global goal event. Every run subscribes when it starts; a matching occurrence for that person completes the run from any node and cancels pending delays, event waits, and send retries. Optional correlation prevents one entity's goal from stopping another entity's journey. The triggering occurrence and payload are retained in the run timeline.

split nodes run an A/B test: each person is routed to one of 2–4 weighted message variants (deterministically, so a person always gets the same variant), then all paths rejoin the journey. The editor shows live per-variant entered, converted, and conversion-rate results. See A/B testing.

Analytics

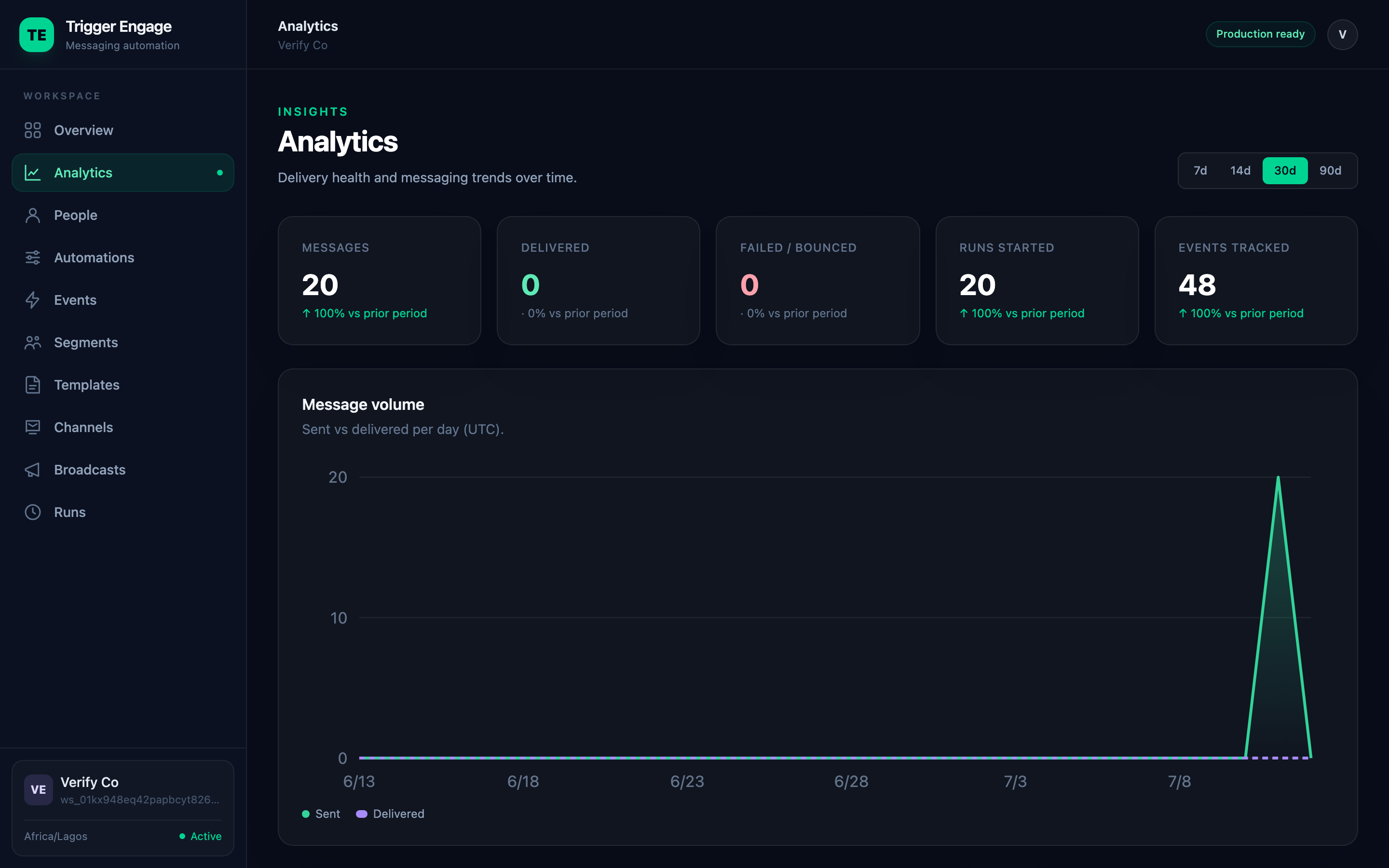

The Analytics page (/app/analytics) is a time-series dashboard over the workspace: message volume (sent vs delivered), a delivery funnel (sent → delivered → opened → clicked), runs and events per day, a per-channel breakdown, and period-over-period deltas, across a 7/14/30/90-day window. Delivered/opened/clicked depend on provider delivery webhooks. See the analytics guide.

Engine guarantees

• No double-sends: each run/node execution is recorded under a unique constraint before provider dispatch. Concurrent workers cannot claim the same send; ambiguous stale sends fail for reconciliation instead of risking another delivery.
• Durable delays: waits persist wake_at on the run and a scheduler tick wakes them — they survive queue restarts and support multi-day waits.
• Race-safe event waits: an occurrence cursor plus row-level claiming makes event-match and timeout mutually exclusive. Pre-deadline events still win when queue processing is delayed.
• Goal-safe execution: goal, wait, timeout, and send reservation transitions share a run-first lock order. A completed goal cannot be overwritten by a late scheduler or queue worker.
• Idempotent ingestion: replays with the same idempotency_key are acknowledged but recorded and processed only once.
• Suppression-aware: unsubscribed/suppressed people are skipped, with the skip recorded in the run's step log.
• Retry-aware: recorded send failures use durable per-step backoff and a configurable final action (continue by default, or fail the run).
• Liquid templates: filters and control flow are supported; missing output variables render empty and are recorded as warnings on the run step.
• Preview fidelity: the editor preview and delivery channel use the same layout renderer and sample Liquid context, so the saved preview matches the stored message snapshot.

Deploying the backend

The recommended deployment is the checked-in Docker Compose stack. It runs the following long-lived services:

Service	Responsibility
web	Nginx, public HTTP entry point
app	Laravel PHP-FPM application and API
horizon	Redis queue workers
scheduler	Laravel scheduler; wakes delays, event timeouts, retries, and records Horizon metrics
postgres	Durable application data
redis	Queues, cache, overlap locks, and Horizon state

Compose is a good production baseline for one host. For high availability, run the same app, horizon, and scheduler images on an orchestrator with managed PostgreSQL/Redis, multiple application replicas behind a load balancer, and exactly one scheduler replica.

1. Prepare the host and DNS

Install Docker Engine with the Compose plugin on a supported Linux host. Point the deployment hostname, for example engage.example.com, to its load balancer or reverse proxy. Only HTTPS should be publicly accessible; PostgreSQL and Redis must remain private.

Clone the repository and work from the server directory:

git clone <repository-url> trigger-engage
cd trigger-engage/server
cp .env.example .env
chmod 600 .env

2. Configure production environment variables

Edit .env before starting any containers. At minimum, set:

APP_ENV=production
APP_DEBUG=false
APP_URL=https://engage.example.com
APP_KEY=base64:replace-with-a-generated-key
LOG_LEVEL=info

DB_CONNECTION=pgsql
DB_HOST=postgres
DB_PORT=5432
DB_DATABASE=trigger_engage
DB_USERNAME=trigger_engage
DB_PASSWORD=replace-with-a-long-random-password

QUEUE_CONNECTION=redis
CACHE_STORE=redis
REDIS_HOST=redis

SESSION_DRIVER=database
SESSION_SECURE_COOKIE=true

Generate APP_KEY once and paste the complete result into .env:

printf 'base64:%s\n' "$(openssl rand -base64 32)"

Store .env and APP_KEY in a secret manager or encrypted backup. Channel credentials are encrypted with APP_KEY; losing or casually rotating it makes those credentials unreadable. APP_URL must be the final HTTPS origin because it is used when generating signed links such as unsubscribe URLs.

The Compose web service listens on host port 8080 by default. Set HTTP_PORT=127.0.0.1:8080 in .env when TLS terminates in a reverse proxy on the same machine, or use an appropriate private interface and firewall rule when TLS terminates elsewhere.

3. Build and start the stack

docker compose build --pull
docker compose up -d postgres redis
docker compose run --rm app php artisan migrate --force
docker compose up -d app web horizon scheduler

Do not run DemoSeeder in production. It creates development credentials and a sample automation. The scheduler service must remain running: engage:tick runs every minute and is responsible for durable delays, wait-for-event timeouts, retry wakeups, and stale execution recovery.

Check the processes and application liveness:

docker compose ps
docker compose exec app php artisan horizon:status
docker compose exec app php artisan schedule:list
curl --fail --silent --show-error https://engage.example.com/up

/up is a liveness endpoint. The authenticated smoke test below additionally exercises PostgreSQL, Redis, the ingestion API, and the queue worker.

4. Terminate TLS and protect management routes

The bundled Nginx container serves HTTP and adds security headers, but it does not terminate TLS. Put it behind a cloud load balancer, ingress controller, Caddy, or another HTTPS reverse proxy. A minimal same-host Caddy route is:

engage.example.com {
    reverse_proxy 127.0.0.1:8080
}

Keep /app behind an identity-aware proxy, VPN, or private network in addition to its workspace Basic credentials. Horizon's production gate denies access until explicitly configured in app/Providers/HorizonServiceProvider.php; if you enable /horizon, protect it with the same private access layer. Public provider webhook routes under /api/v1/webhooks/* must remain reachable over HTTPS.

5. Create the production workspace

Create the first workspace after migrations complete:

docker compose exec app php artisan engage:workspace "My Product" --timezone=Africa/Lagos

The command prints TRIGGER_ENGAGE_WORKSPACE_ID and TRIGGER_ENGAGE_API_KEY once. Save both immediately in the calling application's secret manager. They are also the HTTP Basic username and password used to open /app.

In /app, create templates and delivery channels. Start with internal test recipients before enabling production traffic:

• SMTP/ZeptoMail: use a verified sender domain and a dedicated SMTP credential.
• Termii: configure its regional base URL, API key, sender ID, route, and webhook secret. Send delivery reports to POST /api/v1/webhooks/termii/{channel_id}.
• OneSignal: configure App ID, REST API key, and Event Stream bearer token. Send events to POST /api/v1/webhooks/onesignal/{channel_id} with Authorization: Bearer <token>.

6. Run an end-to-end smoke test

Set the credentials returned by engage:workspace, then submit a test event:

export TRIGGER_ENGAGE_URL=https://engage.example.com
export TRIGGER_ENGAGE_WORKSPACE_ID=ws_replace_me
export TRIGGER_ENGAGE_API_KEY=te_replace_me

curl --fail-with-body \
  --user "$TRIGGER_ENGAGE_WORKSPACE_ID:$TRIGGER_ENGAGE_API_KEY" \
  --header 'Content-Type: application/json' \
  --data "{\"name\":\"deployment_smoke_test\",\"person_id\":\"deploy-smoke\",\"idempotency_key\":\"deploy-$(date +%s)\"}" \
  "$TRIGGER_ENGAGE_URL/api/v1/events"

The response should be accepted, the event should appear in /app, and the Horizon queue should return to zero pending jobs. Remove the synthetic person when finished:

curl --fail-with-body --request DELETE \
  --user "$TRIGGER_ENGAGE_WORKSPACE_ID:$TRIGGER_ENGAGE_API_KEY" \
  "$TRIGGER_ENGAGE_URL/api/v1/people/deploy-smoke"

Operations

Useful operational commands:

docker compose logs --follow web app horizon scheduler
docker compose exec app php artisan horizon:status
docker compose exec app php artisan queue:failed
docker compose exec app php artisan engage:tick

Keep only one scheduler replica unless the schedule is changed to use a shared single-server lock. Horizon can be scaled independently when queue latency rises. After every code deployment, ask Horizon to finish current jobs and reload the new application code:

docker compose exec app php artisan horizon:terminate

Docker's restart policy will bring the horizon service back automatically. Alert on failed jobs, queue latency, overdue waiting_event runs, stale processing steps, message failure/bounce rate, webhook errors, disk capacity, PostgreSQL health, and Redis persistence.

Backups and restore testing

Back up PostgreSQL before every release and on a regular schedule:

mkdir -p backups
docker compose exec -T postgres sh -c 'pg_dump -U "$POSTGRES_USER" "$POSTGRES_DB"' \
  | gzip > "backups/trigger-engage-$(date +%F-%H%M%S).sql.gz"

Also retain the deployment .env/APP_KEY in a separate encrypted secret store and back up the named postgres-data volume according to the host or cloud provider's snapshot procedure. Redis uses append-only persistence, but PostgreSQL remains the source of truth.

Test restores into an isolated environment. A typical restore target is:

gunzip --stdout backups/trigger-engage-YYYY-MM-DD-HHMMSS.sql.gz \
  | docker compose exec -T postgres sh -c 'psql -U "$POSTGRES_USER" "$POSTGRES_DB"'

Do not test restores against the live database.

Updating an existing single-host deployment

Use a maintenance window unless every migration in the release is known to be backward compatible:

# Back up PostgreSQL first.
git fetch --all --tags
git checkout <release-tag-or-commit>
docker compose build --pull
docker compose exec app php artisan down --retry=60
docker compose stop horizon scheduler
docker compose run --rm app php artisan migrate --force
docker compose up -d app web horizon scheduler
docker compose exec app php artisan up
curl --fail --silent --show-error https://engage.example.com/up

Then rerun the authenticated smoke test and inspect failed jobs. Application rollback is safe only when the previous code understands the migrated schema. Otherwise restore the matching database backup and application image together. Never use migrate:rollback blindly on production automation data.

Deploying without Docker Compose

For a managed platform, reproduce the same process topology with PHP 8.4 FPM, Nginx, PostgreSQL, and Redis. Build the release artifact with:

composer install --no-dev --prefer-dist --no-interaction --optimize-autoloader
npm ci
npm run build
php artisan migrate --force

Run php artisan horizon as a supervised, restartable worker and run exactly one supervised php artisan schedule:work process. All web, Horizon, and scheduler replicas must share the same APP_KEY, PostgreSQL database, Redis instance, and release version. See PRODUCTION.md for provider cutover, shadow-mode rollout, monitoring, and release gates.

Tests

./vendor/bin/phpunit
