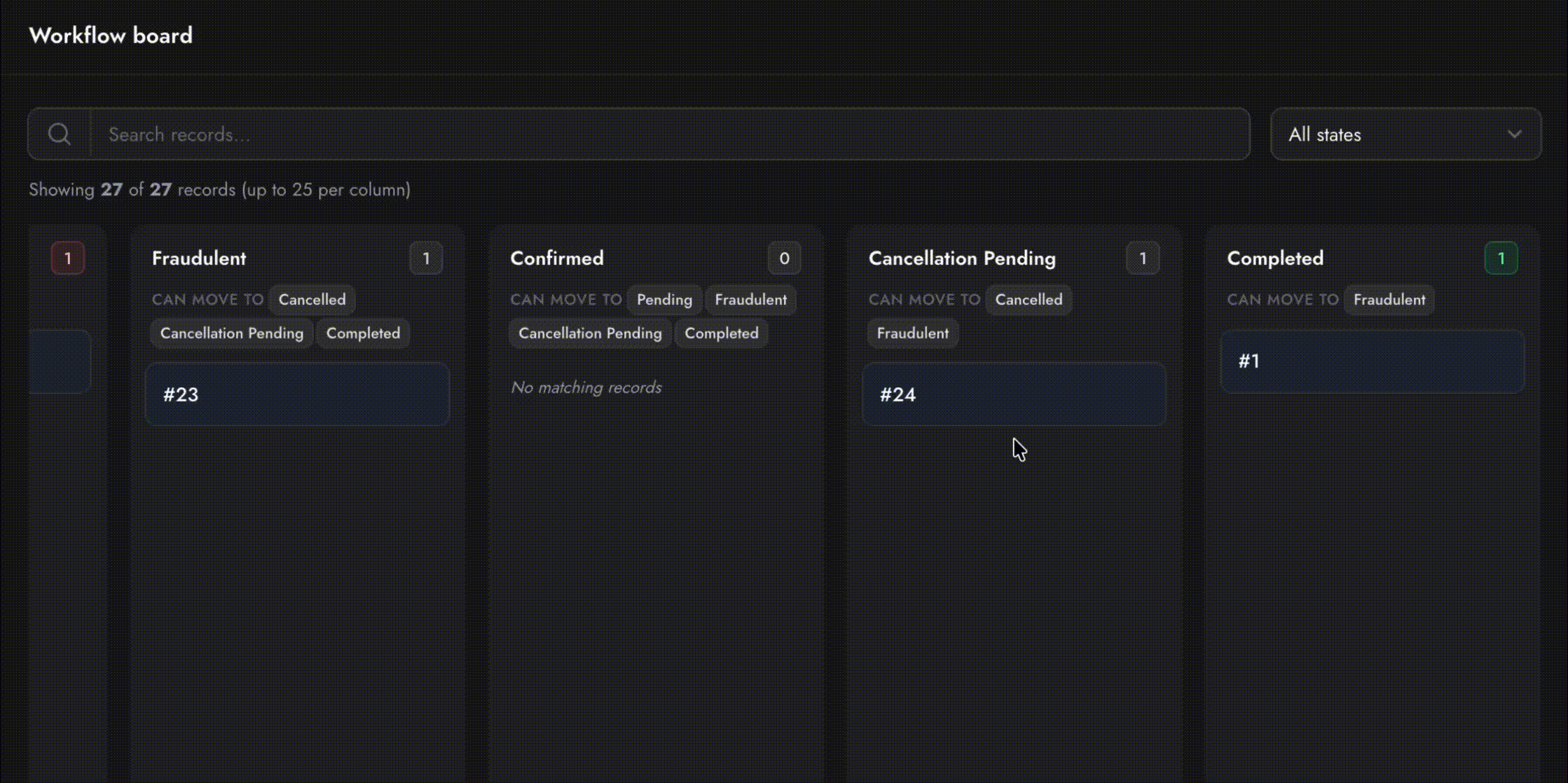

In Action

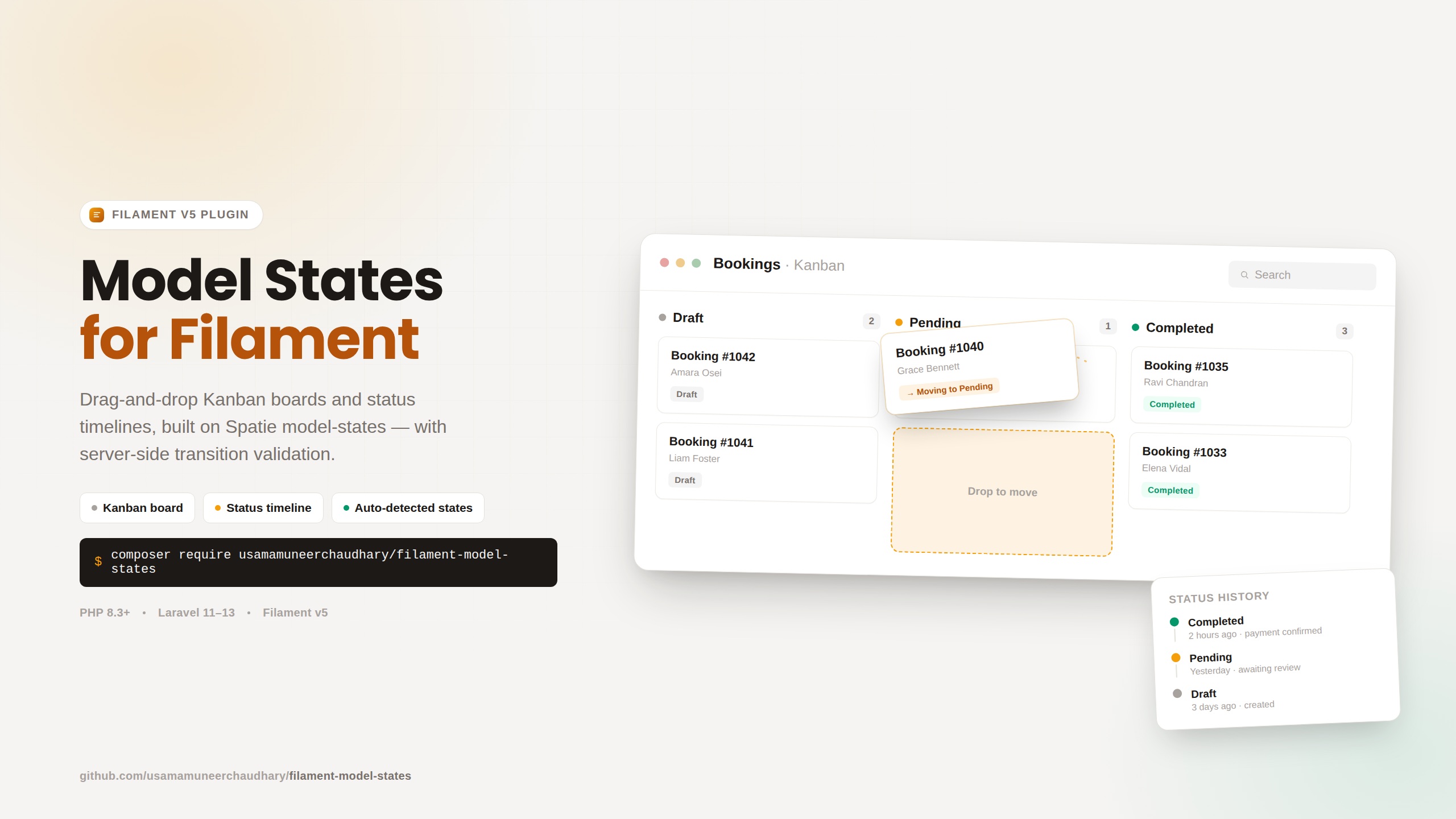

State-aware Kanban board and status timeline components for Filament v5.

Built to sit on top of:

• spatie/laravel-model-status > powers the timeline (status history log)
• spatie/laravel-model-states > powers transition validation and column discovery on the Kanban board (optional but recommended)

Filament Model States provides a plug and play auto-detection for enums, Spatie Model States, or plain database values.

Requirements

• PHP 8.3+
• Laravel 11–13
• Filament v5
• spatie/laravel-model-status (required for timeline + optional status logging on Kanban moves)
• spatie/laravel-model-states (optional for server-side transition validation and config-driven column order)

Installation

composer require usamamuneerchaudhary/filament-model-states

php artisan vendor:publish --tag="filament-model-states-config"

php artisan filament:assets

After upgrading the package, re-run php artisan filament:assets and hard-refresh your browser if Kanban styles or drag-and-drop stop working.

Quick start

1. Prepare your model

Option A: backed enum (simplest)

use Spatie\ModelStatus\HasStatuses;

class Order extends Model
{
    use HasStatuses;

    protected function casts(): array
    {
        return [
            'workflow_state' => WorkflowState::class,
        ];
    }
}

enum WorkflowState: string
{
    case Draft = 'draft';
    case Pending = 'pending';
    case Completed = 'completed';

    public function label(): string
    {
        return match ($this) {
            self::Draft => 'Draft',
            self::Pending => 'Pending',
            self::Completed => 'Completed',
        };
    }

    /** @return array<string, list<string>> */
    public static function transitions(): array
    {
        return [
            'draft' => ['pending'],
            'pending' => ['completed'],
            'completed' => [],
        ];
    }
}

Option B: Spatie Model States

use Spatie\ModelStates\HasStates;
use Spatie\ModelStatus\HasStatuses;

class Booking extends Model
{
    use HasStates;
    use HasStatuses;

    protected function casts(): array
    {
        return [
            'status' => BookingState::class,
        ];
    }
}

2. Add the Kanban to a resource list page

use Usamamuneerchaudhary\FilamentModelStates\Concerns\HasStateKanbanBoard;

class BookingResource extends Resource
{
    use HasStateKanbanBoard;

    // ...
}

// Pages/ListBookings.php
protected function getHeaderWidgets(): array
{
    return [
        BookingResource::getStateKanbanBoard(),
    ];
}

That's it. Columns, labels, transitions, and column order are auto-detected.

3. Verify detection (optional)

php artisan filament-model-states:make-kanban Booking --detect --state-field=status

Kanban board

Plug-and-play widget

Point the board at any model, no subclass required:

use Usamamuneerchaudhary\FilamentModelStates\Widgets\ModelStateKanbanBoard;

// List page header widgets
ModelStateKanbanBoard::for(Booking::class)

// Non-default state field
ModelStateKanbanBoard::for(Booking::class, stateField: 'status')

Resource trait (recommended)

Add HasStateKanbanBoard to your Filament resource, then register on the list page:

use Usamamuneerchaudhary\FilamentModelStates\Concerns\HasStateKanbanBoard;

class OrderResource extends Resource
{
    use HasStateKanbanBoard;
}

protected function getHeaderWidgets(): array
{
    return [
        OrderResource::getStateKanbanBoard(),
    ];
}

Generated widget (optional)

If you prefer a dedicated widget class:

php artisan filament-model-states:make-kanban Booking --resource=BookingResource

This creates app/Filament/Widgets/BookingKanbanBoard.php and prints wiring instructions. Use --force to overwrite, --detect to inspect without generating.

Custom widget (full control)

Extend StateKanbanBoard when you need complete control over columns, queries, card content, or authorization:

use Usamamuneerchaudhary\FilamentModelStates\Widgets\StateKanbanBoard;

class OrderStatusBoard extends StateKanbanBoard
{
    protected function getModel(): string
    {
        return Order::class;
    }

    protected function getStateField(): string
    {
        return 'workflow_state';
    }

    protected function getColumns(): array
    {
        return ['draft', 'pending', 'processing', 'completed', 'cancelled'];
    }

    protected function getAllowedTransitions(): ?array
    {
        return WorkflowState::transitions();
    }

    protected function getColumnLabel(string $key): string
    {
        return WorkflowState::from($key)->label();
    }

    protected function getCardTitle(Model $record): string
    {
        return "Order #{$record->reference}";
    }

    protected function getCardSubtitle(Model $record): ?string
    {
        return $record->customer_name;
    }

    protected function getQuery(): Builder
    {
        return Order::query()->where('team_id', filament()->getTenant()->id);
    }
}

Auto-detection

ModelStateKanbanBoard resolves everything through StateConfigurationResolver:

Priority	Source	Columns	Transitions	Labels
1	Backed enum cast	Enum::cases()	Enum::transitions() or Model::getStateTransitions()	Enum::label()
2	Spatie Model States cast	BookingState::getStateMapping()	BookingState::config() allowances	State::label() or headline of $name
3	Database fallback	Distinct values in the state column	Model::getStateTransitions() if defined	Headline of stored value

State field detection

The resolver looks for, in order:

1. workflow_state, state, or status attributes in $casts
2. Any enum cast whose field name contains state or status
3. Any Spatie state cast on a field containing state or status
4. Any enum or Spatie state cast

Pass an explicit field when ambiguous:

ModelStateKanbanBoard::for(Booking::class, stateField: 'status')

Spatie Model States

Transitions

When your model uses spatie/laravel-model-states, the Kanban reads allowances directly from your abstract state's config():

abstract class BookingState extends State
{
    public static function config(): StateConfig
    {
        return parent::config()
            ->default(Initiated::class)
            ->allowTransition(Initiated::class, AwaitingPayment::class, ToAwaitingPayment::class)
            ->allowTransition(Initiated::class, Expired::class, ToExpired::class);
    }
}

On drag-and-drop:

1. UI: only allowed target columns are highlighted; invalid targets are blocked client-side.
2. Server: $currentState->canTransitionTo($targetStateClass) is called before saving.
3. Persist: $currentState->transitionTo($targetStateClass) runs your transition classes (ToAwaitingPayment, etc.).
4. History: if the model uses HasStatuses, setStatus() is called automatically.

Column keys and labels

Property	Used for
public static string $name = 'initiated'	Column key (DB value / morph class)
label()	Column header label (optional)
description()	Not used for Kanban headers, keep this for tooltips or detail views

Without label(), headers are generated from $name (e.g. initiated → "Initiated").

class Initiated extends BookingState
{
    public static string $name = 'initiated';

    public static function label(): string
    {
        return 'Initiated';
    }

    public static function description(): ?string
    {
        return 'Booking has just been created';
    }
}

Column ordering

Columns are ordered automatically. Priority:

1. columnOrder() on the abstract state class (explicit override)
2. $sortOrder or sortOrder() on each concrete state class
3. Config registration order: default state first, then the order allowTransition() calls appear in config()
4. Filesystem discovery: remaining states in directory order

Explicit order example:

abstract class BookingState extends State
{
    public static function columnOrder(): array
    {
        return [
            'initiated',
            'awaiting_payment',
            'pending',
            'confirmed',
            'completed',
            'cancelled',
        ];
    }
}

Per-state sort order:

class Initiated extends BookingState
{
    public static int $sortOrder = 1;
    public static string $name = 'initiated';
}

Enum-based workflows

Define transitions on the enum:

public static function transitions(): array
{
    return [
        'draft' => ['pending', 'cancelled'],
        'pending' => ['processing', 'cancelled'],
        'processing' => ['completed', 'failed'],
        'completed' => [],
        'cancelled' => ['draft'],
        'failed' => ['pending'],
    ];
}

Or on the model:

public static function getStateTransitions(): array
{
    return WorkflowState::transitions();
}

Enum case order in the PHP file is used as column order.

Optional model hooks

Search

Add a query scope to enable the board's search box:

public function scopeFilamentKanbanSearch(Builder $query, string $search): Builder
{
    return $query->where(function (Builder $query) use ($search): void {
        $query->where('reference', 'like', "%{$search}%")
            ->orWhere('customer_name', 'like', "%{$search}%");
    });
}

Status history on Kanban moves

Use HasStatuses on the model. Each successful drag calls:

$record->setStatus($targetColumn, 'Moved via Kanban board');

Customize the reason by extending StateKanbanBoard::persistStateChange().

Spatie state class resolution

If column keys don't map cleanly to state classes, add to your model:

public static function getStateClassForColumn(string $column): string
{
    return match ($column) {
        'awaiting_payment' => AwaitingPayment::class,
        default => throw new InvalidArgumentException("Unknown column [{$column}]"),
    };
}

Status timeline (Infolist)

Shows a vertical history of status changes from spatie/laravel-model-status.

Basic usage

use Usamamuneerchaudhary\FilamentModelStates\Infolists\Components\StatusTimelineEntry;

public static function infolist(Schema $schema): Schema
{
    return $schema->components([
        StatusTimelineEntry::make('status_history')
            ->label('Status history')
            ->limit(20),
    ]);
}

Resource trait

use Usamamuneerchaudhary\FilamentModelStates\Concerns\HasStatusTimelineInfolist;

class OrderInfolist
{
    use HasStatusTimelineInfolist;

    public static function configure(Schema $schema): Schema
    {
        return $schema->components([
            Section::make('Status history')
                ->schema([
                    self::statusTimelineEntry(),
                ]),
        ]);
    }
}

The timeline reads $record->statuses(), shows each state with reason and duration, and highlights the current one. Status labels match the Kanban board (enum label(), Spatie state label(), or a headline fallback).

Options

StatusTimelineEntry::make('status_history')
    ->limit(20)              // max entries shown (no pagination UI)
    ->hideReason()           // hide the reason text
    ->emptyStateLabel('No changes yet.');

Kanban features

• Drag-and-drop between columns with SortableJS (bundled, no CDN)
• Server-side validation: invalid moves are rejected with a notification; cards snap back
• Confirmation modal before saving a move (configurable)
• Search: filters cards when scopeFilamentKanbanSearch is defined
• Column filter: dropdown to focus on a single column
• Totals: SQL counts per column; cards are paginated per column
• Transition hints: "Can move to" chips under each column header
• Authorization: Gate::authorize('update', $record) on every move

Artisan command

# Inspect auto-detected configuration
php artisan filament-model-states:make-kanban Booking --detect

# Specify a non-default state field
php artisan filament-model-states:make-kanban Booking --detect --state-field=status

# Generate a widget class
php artisan filament-model-states:make-kanban Booking --resource=BookingResource

# Overwrite an existing generated widget
php artisan filament-model-states:make-kanban Booking --force

Example --detect output:

 Model              App\Models\Booking
 State field        status
 Detection source   spatie-model-states
 Columns            initiated, awaiting_payment, pending, ...
 Transitions        {"initiated":["awaiting_payment","expired"], ...}

Configuration

Published to config/filament-model-states.php:

return [
    'timeline' => [
        'per_page' => 25,
        'show_reason' => true,
        'date_format' => 'M j, Y \a\t g:i A',
    ],

    'kanban' => [
        // Filament color tokens per column key
        'column_colors' => [
            'draft' => 'gray',
            'pending' => 'warning',
            'processing' => 'info',
            'completed' => 'success',
            'cancelled' => 'danger',
            'failed' => 'danger',
        ],

        // Show a danger notification when a drag is rejected
        'notify_on_invalid_transition' => true,

        // Max cards rendered per column (totals always use SQL counts)
        'records_per_column' => 25,

        // Confirm in a modal before persisting a move
        'confirm_before_move' => true,
    ],
];

Unlisted column keys fall back to gray. Override per-widget via getColumnColor() on a custom StateKanbanBoard subclass.

How transition validation works

When a card is dropped on a new column, moveRecord() runs server-side:

1. Loads the record with a row lock.
2. Authorizes update on the record.
3. Checks the transition:
   • Spatie Model States: $state->canTransitionTo($targetStateClass)
   • Enum / manual map: getAllowedTransitions() array
   • No rules: all moves allowed
4. Persists via transitionTo() (Spatie) or direct attribute save (enum/DB).
5. Optionally logs to status history via setStatus().

The browser cannot bypass step 3, enforcement lives in your state machine, not JavaScript.

Where to register the board

Location	How
Resource list page (recommended)	getHeaderWidgets() → YourResource::getStateKanbanBoard()
Custom page	ModelStateKanbanBoard::for(YourModel::class) in getHeaderWidgets() or getFooterWidgets()
Panel widgets	Only if you want a global board, usually prefer resource-scoped

Compatibility

• Filament v5 (filament/filament ^5.0)
• Laravel 11–13
• PHP 8.3+
• StatusTimelineEntry uses the Filament v5 schemas/infolists API
• Kanban CSS and JS are bundled via FilamentAsset, run php artisan filament:assets after install

License

MIT
