README

Self-hosted, driver-agnostic queue observability for Laravel.

Contents

• Live demo
• Features
• Requirements
• Install
• Payload capture
• Dashboard
• Running workers
• Ops runbook
• Alerting
• Prometheus
• Scheduler observability
• Testing
• Upgrading
• Changelog
• Contributing
• Security Vulnerabilities
• Credits
• License

Live demo

queue-insights-demo-main-wgcmqf.laravel.cloud — public preview hosted on Laravel Cloud, seeded with realistic fixtures.

Features

• Driver-agnostic depth, in-flight, delayed counts per queue — SQS, Redis, database.
• Pending & delayed-job inspector per queue, event-captured into Redis (same view across drivers).
• Batched jobs — per-batch progress, counts, cancelled state, per-item rollup linking back to job modals.
• Chained-job visibility — ↳ Next chip + Chain modal section, plus opportunistic backward ↰ From {parent} lineage.
• Wait time per queue (p50 / p95) and per job — enqueue → pickup gap.
• 24h throughput sparkline + headline stats (jobs/min, past hour, max p95 wait + runtime).
• Queues grouped Needs attention vs Healthy so a broken queue can't hide in a long list.
• Per-class metrics — 24h processed / failed, avg + max duration, last run.
• Recent completed + failed lists with shared filter row (connection, queue, class, date range), per-page dropdown (10 / 25 / 50 / 100), all persisted in the URL. Failed rows surface runtime alongside Completed (computed via a 30 d failed-runtime:{uuid} side-key written when the worker's start: stamp survives to JobFailed).
• Global queue + class scope across every tab. Click a queue row on the Queues tab or a class row on the Classes tab to scope Failed, Completed, Pending, Classes, and Silenced lists in one move. URL-shareable (?qk={conn}:{queue}, ?ck={fqcn}); inline scope strip above the tabs shows the active scope with per-chip clear; click an already-selected row to toggle off. Scoping a silenced class auto-reveals its rows on Failed + Completed.
• Retry badge — pending, in-flight, and completed rows render an orange retry N chip with hover tooltip when the worker has picked the job up more than once. Backed by attempts stamped on the pending:{uuid} hash at JobProcessing.
• Retry failed jobs from the dashboard, single or bulk — gated, rate-limited, audit-logged.
• Markdown export of failed-job details for AI-assisted triage or trackers.
• Alerting — eight detectors (depth, stalled, oldest-pending, stuck-inflight, failure-rate, slow-p95, snapshot-errored, backlog-growing) with per-rule cooldown + log / slack / mail channels + typed events.
• Prometheus — opt-in /metrics (text + OpenMetrics), fail-closed auth, per-class cardinality control, optional scheduler metrics families, plus a prometheus-push command for short-lived workers.
• Scheduler observability — opt-in. Captures every Illuminate\Console\Events\Scheduled* into per-task definition snapshots + per-run records (start/finish/exit/runtime/host/output), exposes a lazy-loaded dashboard panel with per-task + per-run drilldown modals (host-distribution chart, correlated-jobs section, exception block, output viewer, markdown export), ships a missed/hung sweeper, and routes scheduler alerts through the same QueueAlertNotification pipeline as queue alerts (log / slack / mail; per-domain channel block) — typed ScheduledTaskMissed / ScheduledTaskHung / ScheduledTaskFailed events still fire alongside.
• Light / dark / system theme with a tri-state toggle in the header. Persists per operator; default follows OS prefers-color-scheme.
• Standalone Livewire + Blade — no Filament or Nova coupling.
• Small, bounded Redis footprint — auto-evicting, no external observability service required.

Requirements

• PHP 8.3+
• Laravel 11, 12, or 13
• Redis (for insights storage)
• livewire/livewire 3 or 4 (only if you use the bundled dashboard route).

CI runs against three Livewire resolver legs: Livewire 3.0, Livewire 3 latest, and Livewire 4 latest. Coverage is PHP-side only. The JS and Alpine paths aren't browser-tested, so do a smoke render in your own staging before upgrading the host.

Install

composer require sandermuller/laravel-queue-insights
php artisan vendor:publish --tag=queue-insights-config

The service provider auto-discovers.

Payload capture

Off by default. Laravel payloads embed serialized and sometimes encrypted job state, and a regex over JSON keys can't sanitize that safely.

Three modes via QUEUE_INSIGHTS_CAPTURE_PAYLOADS:

Mode	Behavior
off (default)	No payload persisted.
metadata	displayName, maxTries, timeout, backoff only. No user data, no serialized command body.
full	Raw body after a sanitizer pass. Apps with sensitive jobs MUST bind a custom PayloadSanitizer that understands their job shape.

Read SECURITY.md before enabling full.

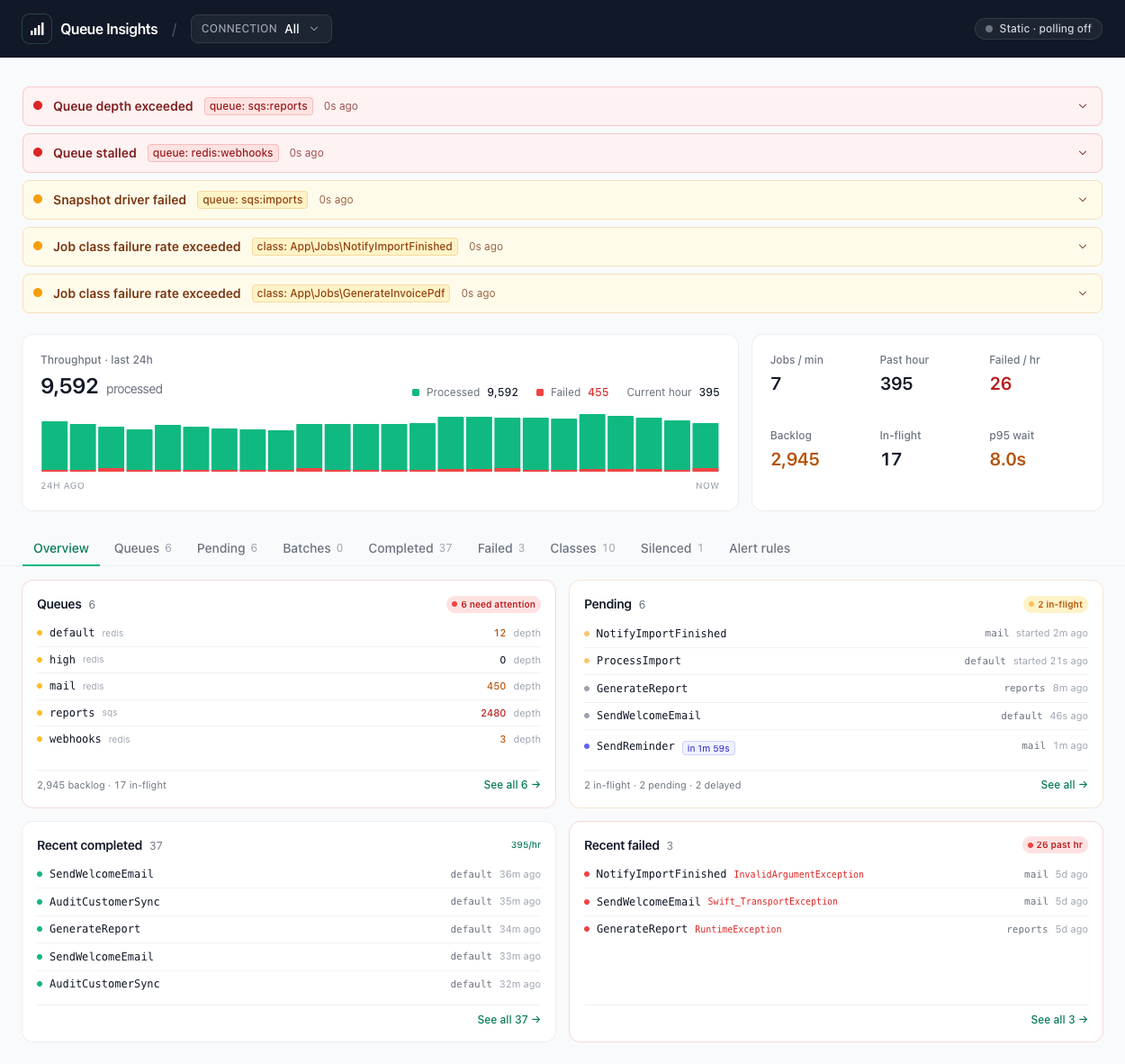

Dashboard

Mounts at /queue-insights when dashboard.enabled=true and livewire/livewire is installed. Define the viewQueueInsights Gate in your app:

// app/Providers/AuthServiceProvider.php
Gate::define('viewQueueInsights', fn ($user) => $user->isAdmin());

Multi-connection scoping

When you monitor more than one queue connection (e.g. a multi-tenant app with one connection per tenant, or a mixed sqs + redis setup), the dashboard exposes connection as a first-class navigation axis, not a filter dropdown:

• /queue-insights — un-scoped, every monitored connection aggregated into one view.
• /queue-insights/{connection} — scoped to a single connection. Every panel narrows: queue rows, alerts strip, snapshot watchdog, pending/delayed/in-flight inspectors, batches, recent completed/failed lists, headline stats (jobs / min, throughput sparkline, p95 wait, max runtime), per-class metrics, and the alert-rules panel's depth thresholds.

A tab strip above the headline cards renders one tab per allowed connection plus an "All" tab. The strip auto-suppresses when only one connection is monitored.

The {connection} segment is constrained to your configured snapshots.*.connection names — typos 404 instead of mounting an empty dashboard.

Per-connection authorisation (optional)

Add the viewQueueInsightsConnection Gate to authorise per connection:

// app/Providers/AuthServiceProvider.php
Gate::define('viewQueueInsightsConnection', function ($user, string $connection): bool {
    return $user->canAccessTenant($connection);
});

When defined, the dashboard:

• 403s direct visits to /queue-insights/{connection} the user can't access.
• Hides denied connections from the tab strip.
• Renames the "All" tab to "All allowed" with a tooltip listing only the connections the user can already open (denied tenants are never named).

If the gate isn't defined, every monitored connection is reachable to anyone who passes viewQueueInsights — same behaviour as pre-spec versions.

Audit log carries scope

Every retry log line (queue-insights.retry) includes scope_connection alongside the existing filter snapshot, so retries that span tenants are distinguishable from scoped retries.

Upgrade note — per-connection class metrics need traffic to warm

Per-connection class counters (processed:{class}:{connection}:{bucket}, failed:{class}:{connection}:{bucket}, duration:{class}:{connection}, last_run:{class}:{connection}, classes:{connection} zset) are dual-written alongside the existing aggregate keys. Aggregate dashboards (/queue-insights) render correctly from second 0 after upgrade. Scoped views (/queue-insights/{connection}) for per-class p95 / throughput / 24h totals fill in as new events flow — the first hour after deploy will show 0 for class counts on a scoped view. Aggregate keys are unchanged so rolling back the package version is safe.

Known limitations under scope

These v1 gaps surface only on the connection-scoped routes; the un-scoped dashboard is unaffected.

• Heterogeneous batches are first-write-wins. A Bus::batch([...]) whose member jobs span multiple connections is indexed under the connection that dispatched the FIRST job. Other connections' scoped views won't see the batch. The detail/items view under scope reads qi:batch-uuid-conn:{uuid} (a dedicated uuid → connection side-key written when the job is queued, lifetime = batches.ttl_seconds) so cross-connection member uuids stay filtered even after the member has been processed/failed. Members past batches.ttl_seconds from queue time pass through. Operators relying on heterogeneous batches can fall back to the un-scoped view, which still shows every batch.
• Recent completed list under a class drilldown post-filters by connection. When the operator selects a class on a scoped view (?class=App\\Foo on /queue-insights/redis) the read routes to the per-class stream and post-filters rows by their connection field. The class stream caps at 1000 entries so the post-filter is cheap, but in extreme traffic skews a class drilldown may show fewer rows than the un-scoped class view. The plain scoped Recent completed list (no class drilldown) reads the dedicated qi:completed:connection:{c} stream and is unaffected.
• Per-connection counter dual-write isn't atomic. Aggregate and per-connection counters are written as separate Redis commands. A listener crash mid-write can leave the per-connection counter behind aggregate; later traffic re-fills it. Same best-effort guarantee the package's existing listeners offer; never produces phantom data.

Retry permissions (write actions)

Retrying a failed job is a write action and needs its own Gate, separate from the read-only viewQueueInsights:

Gate::define('retryFailedJobs', fn ($user) => $user->isAdmin());

Without that Gate, the Retry button stays hidden in the failed-job modal, the bulk Retry button stays hidden above the failed-jobs table, and direct calls to the underlying Livewire methods (retryFailed, retryFailedBulk) return 403.

The retry path uses Laravel's first-party queue:retry Artisan command, so it's idempotent against an already-retried row and works regardless of queue driver.

Guards on the retry path:

• 30 retries per minute, per user.
• The server rejects a bulk retry when the matching set is over 100 rows. The UI shows a "narrow to retry" hint instead of the action button.
• The server also rejects a bulk retry when no filter is set, so you can't accidentally one-click retry every failed job.
• Every retry writes an info-level log line with channel queue-insights.retry, including the user id, the active filter set, and scope_connection (the multi-connection scope, when set). Forward that to your audit log.

Retry workflow

To triage a failed job:

1. Open the dashboard and find the row in the Recent failed list.
2. Optional: narrow with the inline filter toolbar above the list — connection, queue, class, or date range. The URL updates as you change a field, so the filtered view is shareable.
3. Click any row to open the failed-job modal. You'll see the exception, stack trace, payload, and metadata.
4. To retry one job, click Retry in the modal header. The button flips to a red "Confirm retry?" for two seconds; click again to fire. The modal closes and a green banner confirms dispatch. If queue:retry exits non-zero, you get a red banner instead of a misleading success.
5. To retry several at once, set at least one filter. A Retry N jobs button appears next to the section heading, with the same two-click confirm pattern. Anything matching more than 100 rows shows a N matches · narrow to retry hint instead of an action button.

A failed retry never leaves the dashboard in a half-broken state. The row is either re-dispatched (and removed from failed_jobs) or left alone.

Filtering & scoping

There are two layers. Global scope (queue + class) is set by clicking a row on the Queues or Classes tab and applies to every list pane — Failed, Completed, Pending, Silenced. Per-pane filters narrow within a tab on top of the active scope.

Global scope

Axis	Set by	Cleared by	Query-string key
Class	clicking a class row on the Classes tab	clicking the same row again, or the chip's ×	ck
Queue	clicking the connection/queue cell on the Queues tab	clicking the same row again, or the chip's ×	qk

Active scope renders as an inline Filtering by queue=… · class=… strip above the tab bar with a per-chip clear button. URL-shareable so a paste into chat preserves the operator's view.

When the active class scope IS a class in queue-insights.silenced, both Failed and Completed auto-reveal silenced rows so the lists don't read empty after the click. The "Show silenced" checkbox on each pane stays available for an explicit override.

Per-pane filters

Both Recent completed and Recent failed have an always-visible filter toolbar above the list. Each field binds to a short query-string key, so a narrowed view is shareable and bookmarkable.

Connection, Queue, and Class are populated as <select> dropdowns from the configured snapshots and the 24h class roster — no free-text typos. The Class dropdown on both panes binds to the global ?ck= (same prop the Classes tab toggles), so picking a class on either pane scopes the other automatically.

Recent failed filter

Field	Query-string key	Match semantics
Connection	fc	Exact (connection column)
Queue	fq	Exact (queue column)
Class	ck	Anchored prefix substring on payload.displayName, case-insensitive
From	ffrom	failed_at >= <Y-m-d> 00:00:00
To	fto	failed_at <= <Y-m-d> 23:59:59

The class filter avoids JSON-extract syntax, which diverges across MySQL, Postgres, and SQLite. Instead it runs LOWER(payload) LIKE '%"displayname":"<input>%', which produces the same match set on all three. Picking App\Jobs\SendEmail matches that exact class, and the underlying LIKE semantics still anchor the prefix so e.g. selecting a parent namespace would match its descendants.

The filter row also drives the bulk-retry scope. The Retry N jobs button retries the same set the list is showing.

Recent completed filter

Same five fields, separate state. Class is pre-filtered at the storage layer (per-class Redis stream key); the other four narrow the already-fetched 50-row default cap in PHP.

Field	Query-string key	Match semantics
Connection	cc	Case-insensitive substring
Queue	cqu	Case-insensitive substring
Class	ck	Exact FQCN — picks a single per-class stream
From	cfrom	processed_at >= <Y-m-d> 00:00:00
To	cto	processed_at <= <Y-m-d> 23:59:59

Wait time

Wait time is the gap between enqueue and worker pickup. Duration is the gap between worker pickup and completion. They're different numbers, and wait time is the one to look at when depth / in-flight look fine but jobs feel slow.

It shows up in two places:

• Queue rows show a p50 / p95 Wait column, computed over the most recent 1000 jobs on that queue and refreshed every poll. Shows — until 10 samples have accumulated.
• The completed-job and failed-job modals show wait <human> (NN ms) next to the Duration row. Shows — for jobs queued before the JobQueued listener was wired, and for drivers that don't stamp payload.uuid.

Capture is automatic. Installing the package wires an Illuminate\Queue\Events\JobQueued listener that records the enqueue timestamp, so no host-app config is needed. The cost per job is one Redis SETEX at push, plus a GET + ZADD + ZREMRANGEBYRANK + EXPIRE chain at worker pickup. Retention: 1h on the per-uuid pushed: key, 7d on the per-uuid wait: sample, rolling 1000 most-recent on the per-queue ZSET.

A 7-day clock-skew guard rejects any wait sample over that, so a producer host with bad NTP can't poison the percentile pool indefinitely.

Pending & delayed jobs

Each queue row in the dashboard has a collapsible inspector that shows individual pending and delayed jobs — class FQCN, queued-at humanized, and (for delayed) runs in <countdown>. The toggle button shows the tracked count next to the queue's badges; click to expand. The expand state is URL-shareable (?qopen=connection:queue).

The Pending tab itself shows three sub-sections (in-flight / pending / delayed). Per-row chips surface live state: amber running with a pulsing dot for in-flight rows, indigo delayed with a hover tooltip showing total delay + queued/runs timestamps for delayed rows, and an orange retry N chip when the worker has picked the job up more than once (attempts > 1). The retry stamp is written by the JobProcessing listener via MarkInFlight.lua and ages out with the pending hash.

The data is event-captured into Redis, not peeked from the queue driver. The JobQueued listener stamps a per-uuid hash + per-queue sorted set into the package's Redis namespace; JobProcessing / JobProcessed / JobFailed clean up. Driver-agnostic by design — works for SQS, where there's no way to peek individual messages without consuming them, alongside Redis and database queues.

Bounded storage:

• ~500 bytes per pending job (uuid + class FQCN + connection + queue + queued_at + available_at).
• Per-queue cap (pending.max_per_queue, default 10000) enforced via ZREMRANGEBYRANK — when the cap is hit, the lowest-score (earliest available_at) entry is dropped first.
• TTL safety net (pending.ttl_seconds, default 86400 = 24h) drops orphans whose cleanup listener never fired (worker crash, raw Queue::push() outside Laravel's event flow).

The dashboard compares the tracked count against the snapshot's depth + delayed — when they diverge by more than pending.gap_warn_threshold (default 5), a +N gap badge appears on the toggle and a banner inside the inspector body warns that the lists are a sample, not a complete enumeration. Read the queue counters above for totals when the gap is non-zero. Gap usually points to one of:

• A worker crashed mid-pickup and the JobProcessing listener didn't fire (TTL eventually cleans).
• Jobs are being pushed via raw Queue::push() outside Laravel's standard dispatch (no JobQueued event raised).
• The pending.max_per_queue cap kicked in on a high-volume queue (more jobs in the queue than the tracked sample).

To opt out (memory-bounded production), set QUEUE_INSIGHTS_PENDING_ENABLED=false. The listener writes become no-ops, the inspector toggle disappears, and existing keys age out via TTL.

Batches

The dashboard renders a top-level Batches section above the Queues panel for jobs dispatched via Bus::batch([...])->dispatch(). Each row shows the batch name (or Batch <short-id> when unnamed), a progress bar driven by Laravel's authoritative Bus::findBatch() counts, and a counts triplet (processed/total · failed · pending). Cancelled batches show a red cancelled chip; finished + no-failures show a gray finished chip; jobs that fail when allowFailures() is off render cancelled (first failure) even before Laravel stamps cancelled_at.

Expanding a row reveals the per-uuid item list in enqueue order, with a status icon (✓ processed / ✗ failed / ⌛ pending) per item. Clicking a completed item opens the existing completed-job modal (by stream id); clicking a failed item opens the failed-job modal (by failed_jobs.id). The expand state is URL-shareable (?batch=<batchId>).

Every completed, failed, and pending row that belongs to a batch carries a small batch chip — clicking it opens the batch modal directly. The chip also renders inside the completed/failed/pending modal heroes, so an operator drilling into a single job can jump to its batch in one click. Inside an item modal that was opened from a batch, a ← Back to batch button in the header returns you to the batch view without losing context (item modals stack visually on top of the batch modal).

The data is event-captured into Redis alongside Laravel's own BatchRepository. The JobQueued listener writes the following keys per batched job:

• qi:batches:index (sorted set) — recent batchIds, ordered by first-seen unix timestamp. Used to enumerate batches without SCAN. Score-pruned on every enqueue (no whole-key TTL) so the head doesn't accumulate forever.
• qi:batches:index:{connection} (sorted set) — per-connection roster, populated first-write-wins via Lua so a heterogeneous batch lands on exactly one connection. Same score-pruning as the aggregate index. Read by /queue-insights/{connection} scoped views.
• qi:batch:{id}:connection (string) — single arbiter for first-write-wins. The atomic SET … NX on this key gates the per-connection ZADD inside BatchClaimConnection.lua. TTL is refreshed on every subsequent JobQueued for the same batch so the pointer doesn't age out under continued traffic.
• qi:batch-uuid-conn:{uuid} (string) — uuid → connection side-key written for every batched job. Survives the JobProcessed/JobFailed pending-hash deletion so the heterogeneous-batch detail-view scope filter keeps working after members have run.
• qi:batch:{id}:uuids (list) — RPUSH-ordered uuids in the batch. Bounded per batch by batches.max_uuids_per_batch (default 5000, best-effort under heavy concurrent dispatch).
• qi:batch:uuid:{uuid} (string) — reverse lookup uuid → batchId, used to render the per-row chip on completed jobs.

RecordJobProcessed and RecordJobFailed add two more per-uuid index keys (qi:uuid-completed:{uuid} and qi:uuid-failed:{uuid}) so the per-item rollup can route clicks into the existing modal flows.

Bounded storage:

• ~50 bytes per uuid (qi:batch:{id}:uuids entry + qi:batch:uuid:{uuid} reverse pointer + index entry, amortised per batch).
• TTL on every per-batch key (batches.ttl_seconds, default 604800 = 7d). Self-pruning on the index via ZREMRANGEBYSCORE on each enqueue; per-batch keys age out via Redis EXPIRE.
• Authoritative counts (pending_jobs, processed_jobs, failed_jobs, progress, finished_at, cancelled_at) come from Bus::findBatch() on every render — the captured keys exist only to enumerate batches and resolve uuid → display row, NOT to count.

Retry caveat. queue:retry and queue:retry-batch use Queue::pushRaw(), which does NOT fire JobQueued, so a retried job won't refresh as a fresh pending entry in the per-item rollup. The retry will still flow through JobProcessed (which DOES fire), so a successful retry overwrites qi:uuid-failed:{uuid} with qi:uuid-completed:{uuid} and the row flips from ✗ to ✓ within one poll cycle.

To opt out, set QUEUE_INSIGHTS_BATCHES_ENABLED=false. The listener writes become no-ops, the Batches section disappears, and chips stop rendering on existing rows.

Chained jobs

Jobs dispatched through Bus::chain([...])->dispatch() (or $job->chain([...])) carry the remaining chain inside the serialized command body. The dashboard renders that forward chain context in two places:

• List rows — completed and failed rows that have a follow-up job render a small ↳ NextJob (+N) chip, where the leaf-class name shows the immediate next job and +N counts the further-down-chain jobs after it. Hover reveals the full FQCN and the total chained count.
• Modal Chain section — the completed and failed modals include a Chain block with the next job's FQCN, the +N more chained count, and the chain's queue/connection (when set on the job). The block is clickable: it swaps the modal into a "Chained jobs" detail view that lists every chained link in order with per-link connection/queue, and a ← Back button (or Esc) returns to the job view. Drilling into a single chained job inside the failed-job modal also surfaces its constructor properties (extracted from the serialized payload, framework internals filtered out) — same renderer used by the parent job's payload section. The completed-modal chain view stays metadata-only since the slim chain summary persisted on the stream entry doesn't retain user-bound data.

For failed jobs the source is failed_jobs.payload.data.command — Laravel always persists this column, so chain context renders regardless of the package's capture.payloads setting. For completed jobs the listener writes a JSON-encoded chain field (a list of {class, connection, queue} per chained link, typically ~80–300 bytes) onto each completed-stream entry at the time the job runs, also independent of capture.payloads. Per-link connection/queue overrides set on individual jobs are preserved — the displayed route reflects what Laravel will actually dispatch to. Encrypted jobs (ShouldBeEncrypted) carry an opaque base64 blob in data.command, so the chip and section are silently omitted for those rows — no error, just no signal.

Backward chain visibility — ↰ From {parent}. As the parent enters processing, the package drops a short-lived claim ticket into Redis (per-shape FIFO list keyed by connection/queue/next-class/tail-fingerprint, default 60 s TTL). When the next link's JobQueued fires inside CallQueuedHandler::call(), the listener pops a ticket and stamps the parent's UUID onto the child's lineage hash. The completed-modal then renders ↰ From {uuid} above the existing ↳ Next row, and the failed-job markdown export gains a **Parent:** \{uuid}` ({class})` line so AI-assisted triage can trace upstream of the failure point.

• Disable via QUEUE_INSIGHTS_CHAIN_LINEAGE=false (or chain_lineage.enabled = false). Both write and read sides short-circuit at the listener entry — zero Redis writes, zero overhead.
• Encrypted parents (ShouldBeEncrypted) are silently skipped on both sides — the serialized command body is opaque base64, so neither the parent's chain context nor the child's tail can be decoded. The child renders without a parent attribution; document this limitation if you mix encrypted chains with the dashboard.
• Cross-worker collision tolerance. Two parents with identical chain shape (same connection/queue/next-class/remaining-tail) running concurrently on different workers can attribute their children to each other in dispatch order rather than dispatch identity. Within a single worker chain dispatch is synchronous, so attribution is exact. Acceptable for an observability tool — see internal/specs/backward-chain-lineage.md §3 for the full collision model.
• Class label is best-effort. qi:class:{uuid} (TTL = chain_lineage.lineage_ttl_seconds, default 7 d) is the index that hydrates a parent UUID to a class name in the markdown export and modal. Past that horizon the UUID still renders, just without (ClassName).
• Click-through to the parent's modal is not in v1 — the lineage row is plain text plus a copy-to-clipboard button. Resolving a UUID to its target surface (completed stream id vs failed_jobs id) is a follow-up.

queue:retry re-runs a failed job through the normal worker path, so the eventual completed-stream entry of a retried chained job will still carry the correct chain field — the retry doesn't lose chain visibility. Backward lineage is keyed by uuid and survives the retry too: the existing qi:lineage:{uuid} is never overwritten with null.

Customising row markup

The dashboard's queue, completed, and failed lists are each rendered through a Blade partial, plus a shared filter-form partial. They're publishable — a host that wants to swap a row's columns or restyle the filter chrome can publish the partials and edit them in place without forking the whole dashboard.blade.php view:

php artisan vendor:publish --tag=queue-insights-views

Partial	What it renders
partials/queue-row.blade.php	One row in the Queues list (Needs attention + Healthy groups)
partials/completed-row.blade.php	One row in Recent completed
partials/failed-list-row.blade.php	One row in Recent failed
partials/batch-row.blade.php	One row in the Batches section (header + per-item rollup)
partials/batch-chip.blade.php	The small chip rendered on rows that belong to a batch
partials/filter-form.blade.php	The collapsible 5-field filter form (used by both completed + failed)
partials/stat-tile.blade.php	One tile in the headline-stats panel beside the throughput sparkline

If you only want to override one row layout, leave the others unpublished — Blade will fall back to the package's bundled version for those.

Embedding the dashboard inside an admin layout

Disable the bundled route and mount the Livewire component yourself:

// config/queue-insights.php
'dashboard' => ['enabled' => false, /* ... */],

{{-- resources/views/admin/queue-insights.blade.php --}}
@extends('admin.layout')

@section('content')
    @livewire('queue-insights-dashboard')
@endsection

To embed a connection-scoped view, pass the scope as a mount param:

@livewire('queue-insights-dashboard', ['connection' => $tenant->queueConnection])

The component validates the connection against the configured snapshots (404s on mismatch) and runs viewQueueInsightsConnection defensively, same as the bundled route — so this is safe to render in publicly-reachable views.

Dark mode

The dashboard ships with a tri-state theme toggle (sun / monitor / moon) in the header — light, dark, and system (follows prefers-color-scheme, default). The header itself stays Horizon-dark in both modes by design; the rest of the chrome flips between light and dark surfaces.

Persistence lives in localStorage['qi-theme']. A blocking inline script in <head> resolves the preference before first paint, so there's no flash of incorrect theme. The toggle survives wire:navigate morphs without leaking listeners.

'dashboard' => [
    'theme' => [
        // Default true; set to false to revert to the always-light look.
        'enabled' => env('QUEUE_INSIGHTS_DARK_MODE', true),
    ],
],

Operators on system-dark hosts (terminal, IDE, Linear) get a coherent dark dashboard; operators on light hosts see the same look they had before. Disable via QUEUE_INSIGHTS_DARK_MODE=false in .env if needed — the inline script, color-scheme meta, and toggle component all skip emission and the dashboard reverts to the pre-feature always-light rendering.

Custom payload sanitizer

The default KeyRedactingSanitizer can't see inside PHP-serialized data.command bodies. Apps with sensitive jobs should bind their own:

// app/Providers/AppServiceProvider.php
use SanderMuller\QueueInsights\Contracts\PayloadSanitizer;

$this->app->bind(PayloadSanitizer::class, YourSanitizer::class);

Running workers

php artisan queue-insights:work is a thin parent supervisor that reads queue-insights.snapshots, groups entries by connection, and spawns one queue:work subprocess per connection with --queue=q1,q2,... (Laravel's built-in priority list).

# Boot every monitored connection. One process per (connection, queue list).
php artisan queue-insights:work

# Restrict to one connection, e.g. when running per-connection systemd units.
# Both forms compose; they accept repeated flags AND comma-separated values.
php artisan queue-insights:work --connection=sqs
php artisan queue-insights:work --connection=sqs,redis
php artisan queue-insights:work --connection=sqs --connection=redis

# All `queue:work` flags forward verbatim to every child.
php artisan queue-insights:work --tries=5 --timeout=90 --memory=256 --max-jobs=1000

The supervisor owns argv assembly + signal forwarding + exit-code propagation. SIGTERM/SIGINT/SIGQUIT received by the parent are forwarded to every live child; after queue-insights.work.shutdown_grace_seconds (default 120) any survivors get SIGKILL with a stderr warning. Parent exit code is the first non-zero child's, or 128 + signum for signal-initiated stops (Bash convention — lets systemd / supervisord distinguish operator-stop from supervisor-crash).

Output is line-prefixed with [{connection}] so journalctl / docker logs consumers can grep by connection without log shipping.

Non-goals

This is not a Horizon replacement. The command is intentionally bounded to "one command, every monitored queue, one process group." Out of scope:

• Auto-restart on crash — host process manager owns liveness (systemd Restart=on-failure, supervisord, docker restart: unless-stopped).
• Worker pool sizing / autoscaler — one process per connection. Operators who want N workers per connection run N units with --connection=X.
• Worker-liveness Redis keys + dashboard panel — the existing snapshot_command_dead watchdog covers the snapshotter; no qi:workers:* heartbeat.
• Cross-connection priority — not possible while children are separate processes. Within-connection priority works (comma-list --queue=q1,q2,q3).
• Per-queue flag overrides — every child gets the same --tries, --timeout, etc. Per-queue sizing requires separate --connection=X units.

Runtime requirements

• Requires the pcntl extension. POSIX hosts without it (and Windows generally) refuse to boot — the supervisor would otherwise orphan its children on shutdown.
• queue:restart works transparently — children share Laravel's global illuminate:queue:restart cache key reader.
• Pre-deploy ritual is unchanged: run php artisan queue:restart after a deploy, every child picks it up independently.

shutdown_grace_seconds tuning

The default 120s covers --timeout=60 + 20s SQS long-poll + headroom. The window must be strictly greater than the largest child --timeout plus driver poll latency (SQS long-poll = 20s, redis BLPOP up to 5s) — otherwise SIGKILL races a still-draining job. Bump it if you raise --timeout.

// config/queue-insights.php
'work' => [
    'shutdown_grace_seconds' => 120,
],

Ops runbook

Dashboard signals

Signal	Meaning
— on in-flight / delayed	Driver can't produce the metric (Null / sync), or the live cache expired (>90s since the last successful snapshot).
stale badge	No snapshot ran in the last 2 minutes.
error badge	Last snapshot run failed for this queue. Hover for the error message (10-minute TTL).
no snapshot yet	The command has never completed successfully against this queue.

Driver-specific quirks

• SQS values are AWS approximations. GetQueueUrl is cached for 1h in Redis; the first run per new queue name costs one extra API call.
• Redis reads LLEN queues:{name} plus ZCARD on :reserved and :delayed. Matches Laravel's own queue key convention.
• Database depth includes rows whose reservation has expired (crashed workers leave their jobs poppable again). Matches DatabaseQueue::getNextAvailableJob() exactly.

Key-prefix strategies

• Shared Redis (multi-tenant, or multiple apps or envs on the same Redis): keep the default QUEUE_INSIGHTS_KEY_PREFIX=qm:{APP_ENV}:. Safe against collision.
• Dedicated Redis: override to QUEUE_INSIGHTS_KEY_PREFIX=qm: to drop the env segment and shorten every key.

Alerting

Enable via QUEUE_INSIGHTS_ALERTS_ENABLED=true. Eight detectors run every snapshot tick (≈ every minute) against live Redis state:

Rule	Scope	Fires when
depth	per-queue	live:depth ≥ a configured threshold
stalled	per-queue	depth ≥ min_depth AND no worker pickups in idle_seconds
oldest_pending	per-queue	the oldest runnable pending job has been waiting seconds (skips not-yet-due delayed jobs)
stuck_inflight	per-queue	the longest-running in-flight job has been executing seconds
failure_rate	per-class	failed / (processed + failed) ≥ ratio over the current hour bucket AND total ≥ min_jobs
slow_p95	per-class	per-class p95 duration ≥ class_threshold_ms[$class] (opt-in per class)
snapshot_errored	per-queue	the snapshot driver threw on the most recent tick (auto-clears on next success / 10-min TTL)
backlog_growing	per-queue	least-squares depth slope over the recent samples ≥ min_slope_per_minute (opt-in, warms up after min_samples samples)

A dashboard-only watchdog (snapshot_command_dead) renders a top-level red banner when live:depth keys are absent for every configured queue — i.e. the snapshot command itself has been silent for ≥ 90 s.

Cooldown applies to outbound notifications only (key: alert:cooldown:{rule}:{c}:{q}, TTL cooldown_seconds). The dashboard always reflects live state.

Config example

// config/queue-insights.php
'alerts' => [
    'enabled' => env('QUEUE_INSIGHTS_ALERTS_ENABLED', false),
    'cooldown_seconds' => 900,

    'rules' => [
        'depth' => [
            'enabled' => true,
            // Multiple thresholds matching the same (connection, queue) →
            // highest matching severity wins per tick.
            'thresholds' => [
                ['connection' => 'sqs', 'queue' => 'work', 'depth' => 1000, 'severity' => 'warning'],
                ['connection' => 'sqs', 'queue' => 'work', 'depth' => 5000, 'severity' => 'critical'],
            ],
        ],
        'stalled' => ['enabled' => true, 'idle_seconds' => 120, 'min_depth' => 1, 'severity' => 'critical'],
        'oldest_pending' => ['enabled' => true, 'seconds' => 600, 'severity' => 'warning'],
        'stuck_inflight' => ['enabled' => true, 'seconds' => 300, 'severity' => 'warning'],
        'failure_rate' => ['enabled' => true, 'min_jobs' => 20, 'ratio' => 0.10, 'severity' => 'warning'],
        'slow_p95' => [
            'enabled' => false,
            'class_threshold_ms' => ['App\\Jobs\\GenerateReport' => 30_000],
            'severity' => 'warning',
        ],
        'snapshot_errored' => ['enabled' => true, 'severity' => 'warning'],
        'backlog_growing' => [
            'enabled' => false,
            'min_slope_per_minute' => 50.0,
            'min_samples' => 5,
            'severity' => 'warning',
        ],
    ],

    'channels' => [
        'log' => ['enabled' => true, 'level' => 'warning'],
        'slack' => ['enabled' => false, 'webhook_url' => env('QUEUE_INSIGHTS_SLACK_WEBHOOK')],
        'mail' => ['enabled' => false, 'to' => ['ops@example.com']],
    ],
],

Heads up — oldest_pending / stuck_inflight need pending tracking. Both detectors read pending-zset:* / inflight-zset:* populated by the RecordJobQueued / RecordJobProcessing listeners. With pending.enabled = false they short-circuit at runtime and a one-off boot warning lists which rules were tripped. Either re-enable pending tracking or disable those rules.

Notification channels

The package ships three channels out of the box:

• log — zero-dep, on by default; one structured log line per issue at the configured level (alerts.channels.log.level).
• slack — Http::post to a Slack-compatible incoming webhook (works with Slack, Mattermost, Rocket.Chat). Block Kit payload with severity-coloured attachment; falls back to plain text if the receiver rejects Block Kit. Set QUEUE_INSIGHTS_SLACK_WEBHOOK and alerts.channels.slack.enabled = true.
• mail — uses Laravel's first-party mail channel; subject prefix [Queue Insights] {severity}: {rule} on {target}. Recipients from alerts.channels.mail.to (array of addresses).

Both slack and mail feature-detect the underlying binding (Illuminate\Http\Client\Factory and mail.manager respectively) — if the binding is missing they're silently skipped.

Adding more channels (Discord, Teams, PagerDuty, Telegram, …)

The package emits a SanderMuller\QueueInsights\Alerts\Notifications\QueueAlertNotification and routes it through SanderMuller\QueueInsights\Alerts\Notifications\QueueInsightsNotifiable, exactly as Spatie's alerting packages and Horizon do. To add a destination:

1. Install the matching laravel-notification-channels/* package (discord, microsoft-teams, pagerduty, telegram, vonage, …).

2. Extend QueueAlertNotification to add the channel to via() and a to{Channel}() method, OR override QueueInsightsNotifiable and add routeNotificationFor{Channel}().

3. Bind your override in your AppServiceProvider:

   $this->app->bind(QueueAlertNotification::class, MyQueueAlertNotification::class);
   $this->app->bind(QueueInsightsNotifiable::class, MyNotifiable::class);

Typed events (always fire)

Each rule fires a typed event regardless of which channels are enabled — host apps can hook Event::listen(...) for custom routing:

• QueueDepthExceeded (existing — added trailing nullable ?string $severity)
• QueueStalled, OldestPendingAging, StuckInFlight, SnapshotErrored
• JobClassFailureRateExceeded, JobClassP95Exceeded
• BacklogGrowing

Active-rules panel

The dashboard footer renders a read-only summary of alerts.rules + alerts.channels so operators can verify what's monitored without SSH'ing into the server. Edit the config file to change anything — there is no runtime mutation surface.

Migrating from the 0.x alerts.thresholds shape

The pre-1.0 config exposed a single flat alerts.thresholds list. It is still honoured (legacy wins over alerts.rules.depth.thresholds) and emits a one-off boot warning. To migrate:

 'alerts' => [
     'enabled' => true,
     'cooldown_seconds' => 900,
-    'thresholds' => [
-        ['connection' => 'sqs', 'queue' => 'work', 'depth' => 1000],
-    ],
+    'rules' => [
+        'depth' => [
+            'enabled' => true,
+            'thresholds' => [
+                ['connection' => 'sqs', 'queue' => 'work', 'depth' => 1000, 'severity' => 'warning'],
+            ],
+        ],
+    ],
 ],

Note: Laravel's mergeConfigFrom is a shallow merge, so hosts that published config/queue-insights.php before this version will not pick up the new nested defaults under alerts.rules.* automatically — copy the new keys from the package config when migrating.

Silencing noisy jobs

Mirrors Horizon's horizon.silenced knob: list job-class FQCNs whose failures should be suppressed from the dashboard's Failed list, the headline failed-tile, the throughput sparkline's failed series, the failure_rate alert detector, and outbound notifications.

'silenced' => [
    App\Jobs\IntermittentlyFailingJob::class,
    App\Jobs\ThirdPartyApiSometimesFlakes::class,
],

// Glob fallback for whole namespaces or related classes. Exact `silenced`
// entries are matched first; `silenced_patterns` is `Str::is`-style and
// matches case-insensitively, same as `silenced`.
'silenced_patterns' => [
    'App\\Jobs\\Reports\\*',
    'App\\Jobs\\*Sync',
],

Counter writes (qi:processed:{class}:{bucket}, qi:failed:{class}:{bucket}, qi:classes) are preserved — silencing is a read-side filter only, so removing a class from the list immediately re-surfaces its history without any backfill. The class rows table keeps showing throughput / p95 / max for silenced classes with a muted silenced badge so you can still triage them.

Surface	Behaviour under silencing
Failed list (Failed tab)	Hidden by default. The "Show silenced" checkbox on the failed-pane filter form reveals them; URL-shareable as ?fs=1.
Headline failed_past_hour + throughput sparkline failed series	Silenced classes excluded. Processed series stays exact.
failure_rate alert detector	Returns null for silenced classes — no event, no notification, no cooldown burned.
slow_p95 alert detector	Unchanged — silencing is a failure-noise filter, not a perf filter. Exclude noisy classes from class_threshold_ms if you want their perf alerts muted too.
Class rows table	Row stays, marked with a muted silenced badge inline next to the FQCN. Operators still see throughput / p95 / max for silenced classes.
Modal-by-uuid + chain-lineage click-through + batch-detail items	NOT filtered. Silencing is a list-level filter; uuid-addressed lookups always resolve so a batched member or chain parent stays clickable.
qi:failed:{class}:{bucket} Redis counters + qi:classes zset	Still written by the listeners. Silencing is reversible without losing history.

The bulk-retry uuid collector inherits the same SQL exclusion path — bulk-retry actions on the default-filter view never queue silenced classes for retry. Toggle "Show silenced" first if you want them in the bulk set.

Prometheus

Enable via QUEUE_INSIGHTS_PROMETHEUS_ENABLED=true. Mounts GET /metrics (path configurable) exposing queue-insights state in Prometheus 0.0.4 text format — or OpenMetrics 1.0.0 when the scraper sends Accept: application/openmetrics-text (Prometheus negotiates this automatically). Default-off; adoption is opt-in.

Auth is fail-closed: the package's default middleware refuses with 403 unless prometheus.token (preferred for shared infra) or prometheus.allow_ips (CIDR list) is configured. There is no silent open default.

# .env
QUEUE_INSIGHTS_PROMETHEUS_ENABLED=true
QUEUE_INSIGHTS_PROMETHEUS_TOKEN=long-random-string

# prometheus.yml
scrape_configs:
  - job_name: laravel-queue-insights
    metrics_path: /metrics
    bearer_token: long-random-string
    static_configs:
      - targets: ['app.example.com']

Metric catalogue

Metric	Type	Labels	Notes
queue_insights_queue_depth	gauge	connection, queue	Mirrors snapshot loop output. Pair with queue_insights_snapshot_alive.
queue_insights_inflight_jobs	gauge	connection, queue	ZCARD inflight-zset.
queue_insights_pending_jobs	gauge	connection, queue	Runnable now (available_at <= now).
queue_insights_delayed_jobs	gauge	connection, queue	Not yet runnable (available_at > now).
queue_insights_oldest_pending_age_seconds	gauge	connection, queue	0 when empty.
queue_insights_oldest_inflight_age_seconds	gauge	connection, queue	0 when empty.
queue_insights_jobs_processed_total	counter	class, connection	True monotonic INCR — safe for rate() / increase().
queue_insights_jobs_failed_total	counter	class, connection	Same.
queue_insights_job_duration_count_total	counter	class, connection	Mean = rate(sum) / rate(count) Prometheus-side.
queue_insights_job_duration_sum_seconds_total	counter	class, connection	Seconds (HINCRBY sum_ms ÷ 1000).
queue_insights_job_duration_max_seconds	gauge	class, connection	Lifetime max. Use max_over_time() for windowed maxima.
queue_insights_alert_active	gauge	rule, connection, queue, severity (+ class for class-scoped rules)	Always 1 when present; absent series = no alert. Use OR on() vector(0) Grafana-side to render gaps as 0.
queue_insights_snapshot_alive	gauge	connection, queue	1/0. Use this in alerts, not _age_seconds.
queue_insights_snapshot_age_seconds	gauge	connection, queue	Omitted when the snapshot key is absent (so alerts can use absent(...) cleanly instead of clamping to 0).
queue_insights_snapshot_errors_total	counter	connection, queue	Monotonic INCR — paired with the existing 10-min snapshot:error:* boolean.
queue_insights_exporter_collect_duration_seconds	gauge	(none)	Wall-clock seconds of the previous collect cycle.

Per-class metrics (*_processed_total, *_failed_total, duration aggregates) are opt-in by class to bound cardinality. Default class_filter.mode = allow_list with empty classes → no per-class metrics emitted. Three modes:

// config/queue-insights.php
'prometheus' => [
    'class_filter' => [
        // 'allow_list'        — only emit for the FQCNs in `classes` (DEFAULT)
        // 'allow_all'         — emit for every class on classes:{connection}
        // 'top_n_by_recency'  — top N most-recently-seen per connection (recency, NOT throughput)
        'mode' => 'allow_list',
        'classes' => [
            App\Jobs\GenerateReport::class,
            App\Jobs\SyncCustomer::class,
        ],
        'top_n' => 50,
    ],
],

A two-tier cache (per-request memoise + 5 s Redis cache, key prom:cache:rendered:{flavour}) bounds thunder-herd when multiple Prometheus replicas scrape concurrently. Set prometheus.cache_ttl_seconds = 0 to disable both layers for instant reads.

Each metric family has its own toggle under prometheus.metrics.* (default-on) — disable any family the host doesn't need to keep the scrape body lean.

Scheduler metrics

When scheduler.enabled = true AND each per-family toggle below is set, the exporter emits scheduler-side families. Default OFF — adoption is opt-in per family (mirrors the per-class queue metrics stance).

Metric	Type	Labels	Notes
queue_insights_scheduled_task_runs_total	counter	task, status	Status: success (= total_runs - total_failed), failed, skipped. Hung + missed are separate families below.
queue_insights_scheduled_task_runtime_sum_seconds_total	counter	task	Lifetime runtime sum, seconds. Pair with queue_insights_scheduled_task_runs_total for mean: rate(sum) / rate(runs_total{status=~"success|failed"}). Sample omitted until the first finished run.
queue_insights_scheduled_task_last_run_timestamp	gauge	task, status	Unix ts (seconds) of last run per status. Page on time() - queue_insights_scheduled_task_last_run_timestamp{status="success"} > N. Sample omitted when no run of that status exists.
queue_insights_scheduled_task_hung_total	counter	task	Detections from HungTaskReconciler.
queue_insights_scheduled_task_missed_total	counter	task	Detections from MissedRunReconciler.
queue_insights_scheduled_task_in_flight	gauge	task	1 when the task is mid-run (Started without Finished/Failed). Sample omitted when not running.
queue_insights_scheduled_snapshot_age_seconds	gauge	(none)	Seconds since the schedule snapshot was last rewritten on app boot. Omitted when never written (alerts use absent(...) cleanly).
queue_insights_scheduled_sweeper_age_seconds	gauge	(none)	Seconds since MissedRunReconciler last completed a tick. Alert on > 2 × sweeper.sweep_seconds.

Toggle each family independently:

'prometheus' => [
    'metrics' => [
        // ...
        'scheduler_runs_total' => true,
        'scheduler_runtime_sum' => true,
        'scheduler_last_run_timestamp' => true,
        'scheduler_hung_total' => true,
        'scheduler_missed_total' => true,
        'scheduler_in_flight' => true,
        'scheduler_snapshot_age' => true,
        'scheduler_sweeper_age' => true,
    ],

    // Per-task cardinality control. Task rosters are typically <100,
    // so the default is `allow_all`. `top_n_by_recency` is intentionally
    // not supported — see internal/specs/cron-monitoring/07-platform-extensions.md §1.3.
    'task_filter' => [
        'mode' => 'allow_all',  // | allow_list
        'tasks' => [],          // taskKey list, used when mode = allow_list
    ],
],

runtime_max_seconds is intentionally NOT shipped in v1 — would need a Lua HSET-IF-GREATER write path. Operators who need lifetime max can compute max_over_time(queue_insights_scheduled_task_runtime_sum_seconds_total[N]) Prometheus-side as a coarse proxy, or run the per-task duration sparkline in the dashboard for exact values.

Push gateway (short-lived workers / CLI)

For processes that exit before any scrape can land, php artisan queue-insights:prometheus-push does a one-shot collect + PUT to a configured Pushgateway. Long-running workers should be scraped, not pushed — push-mode is for CLI scripts and scheduled tasks where pull-mode can't reach the process.

# .env
QUEUE_INSIGHTS_PUSHGATEWAY_URL=https://pushgateway.example/metrics
QUEUE_INSIGHTS_PUSHGATEWAY_JOB=laravel-queue-insights
QUEUE_INSIGHTS_PUSHGATEWAY_INSTANCE=worker-01   # required for clustered hosts

The command fails closed when pushgateway.instance is unset and --accept-shared-grouping is not passed: clustered hosts that share a job label without distinct instance values silently overwrite each other's pushed metrics. Pass --accept-shared-grouping once you've confirmed single-replica semantics, or set instance per-replica.

php artisan queue-insights:prometheus-push                           # PUT metrics
php artisan queue-insights:prometheus-push --delete                  # DELETE the grouping
php artisan queue-insights:prometheus-push --accept-shared-grouping  # opt out of the instance guard

Exit codes mirror Symfony Console convention: 0 success, 1 Pushgateway HTTP failure, 2 config error (missing URL / unset instance without override).

Scheduler observability

Enable via QUEUE_INSIGHTS_SCHEDULER_ENABLED=true. Off by default — existing queue-insights users opt in.

When on, the package listens on Laravel's Illuminate\Console\Events\Scheduled* events and records:

• Per-task definition snapshots — cron expression, command summary, queue connection, runInBackground, withoutOverlapping, onOneServer. Snapshot is hash-stable; a php artisan schedule:list-style render is rebuilt from these.
• Per-run records — Starting, Finished (exit code + runtime), Failed (exception class + message), Skipped (reason), BackgroundTaskFinished (parent process exits before the child; the run is closed off the running pointer). Output capture is configurable: off / metadata (exit code only) / full (stdout/stderr after the bound PayloadSanitizer pass + byte cap).
• Counters + 24h aggregates — per-task processed / failed / skipped / hung / missed counts and rolling p95 runtime.

# .env
QUEUE_INSIGHTS_SCHEDULER_ENABLED=true
QUEUE_INSIGHTS_SCHEDULER_CAPTURE=metadata   # off | metadata | full
QUEUE_INSIGHTS_SCHEDULER_ALERTS_ENABLED=false

Dashboard panel

When the dashboard is mounted and scheduler.dashboard.enabled = true, a lazy-loaded Scheduled tasks panel renders below the queue panes. Empty-state copy guides first-time hosts; the panel hides itself when scheduler observability is disabled. Gate via the existing viewQueueInsights ability, or define a narrower viewScheduleInsights Gate to gate scheduler reads independently.

Click a row in the Tasks card to open the per-task drilldown — cron expression + flag pills, 24h tile grid, host-distribution bar (suppressed for single-host tasks), recent-runs table scoped to the task. Click a row in Recent runs to open the per-run drilldown — exception block (failed runs), output viewer (full-capture only; closure tasks render an "output capture not supported" hint), skip-reason explainer, correlated-jobs section listing every job uuid the run dispatched (click-through opens the queue-side modal). Both modals are URL-bound (?s_tk= + ?s_rid=) so deep-links round-trip; aged-out runs render an "Expired" empty state. A markdown-export copy button on the run modal hands the full context to AI agents or trackers.

The package rebuilds the snapshot on app->booted from the live Schedule::events(). Hosts that pre-seed the snapshot keys themselves (custom import script, fixture seeder, etc.) can opt out with QUEUE_INSIGHTS_SCHEDULER_SNAPSHOT_REBUILD=false to keep their own data on every boot.

CLI

php artisan queue-insights:schedule:list    # snapshot table: cron, command, last run, counters
php artisan queue-insights:schedule:sweep   # one-off sweep: flag missed + hung runs, dispatch events

Run the sweep on its own short cron (* * * * *) — the sweeper's own work is detect-only; it does not poll Redis on hot-path tick events.

Missed + hung detection

A run is missed when the cron expression's next-fire timestamp passes without a Starting event landing inside sweeper.drift_seconds (default 90 s). A run is hung when no Finished / Failed event arrives within expected_runtime + hung.grace_seconds (default 300 s); expected runtime is the rolling p95 from aggregates and falls back to grace_seconds alone for tasks with fewer than hung.min_runs_for_p95 (default 10) recorded runs.

When scheduler.alerts.enabled = true, missed/hung/failed detections dispatch typed events with per-(taskKey, rule) cooldown (scheduler.alerts.cooldown_seconds, default 900). Cooldown gates the event dispatch itself — when an alert is suppressed by cooldown, no event fires. Host listeners on ScheduledTaskFailed / Missed / Hung therefore only see the leading edge of an alerting condition; subsequent ticks within the cooldown window are silent until cooldown expires.

Notifications additionally require the package-wide alerts.enabled master switch to be on — typed events fire under scheduler.alerts.enabled alone, but log / slack / mail emission is gated on both flags so a host running with alerts.enabled=false for queue alerts doesn't suddenly start paging on scheduler events after upgrade.

SanderMuller\QueueInsights\Events\ScheduledTaskMissed   { taskKey, task, expectedAtMs }
SanderMuller\QueueInsights\Events\ScheduledTaskHung     { taskKey, runId, task?, … }
SanderMuller\QueueInsights\Events\ScheduledTaskFailed   { taskKey, runId, task, … }

Scheduler alerts route through the same QueueAlertNotification pipeline as queue alerts — log / slack / mail channels, Spatie-style notifiable, host-extensible. Operators get one mental model and one set of channels to wire.

Per-domain channel routing

Populate scheduler.alerts.channels to send scheduler alerts to a different Slack channel / mail recipient list / log channel. When the scheduler block has at least one channel explicitly enabled, scheduler-scoped issues read it; otherwise they fall back to alerts.channels. Single-list installs (only alerts.channels populated) Just Work without any extra config:

'scheduler' => [
    'alerts' => [
        'enabled' => env('QUEUE_INSIGHTS_SCHEDULER_ALERTS_ENABLED', false),
        'cooldown_seconds' => 900,
        'channels' => [
            'slack' => [
                'enabled' => true,
                'webhook_url' => env('QUEUE_INSIGHTS_SCHEDULER_SLACK_WEBHOOK'),
                'channel' => '#cron-watch',
            ],
        ],
    ],
],

Scheduler-scoped Slack payloads carry a Run URL field that deep-links into the dashboard's per-run modal (?s_rid={taskKey}:{runId}). Missed runs link to the per-task modal (?s_tk={taskKey}) instead.

The typed ScheduledTaskFailed / ScheduledTaskMissed / ScheduledTaskHung events keep firing alongside the notification path, so existing host listeners stay wired. The cooldown key namespace moved from sched:alert:cooldown:* to alert:cooldown:scheduled_task_*:task:{taskKey} for parity with queue-side alerts — see UPGRADING for the one-shot Redis cleanup.

External heartbeat

In-process detection cannot catch a fully-dead scheduler (schedule:run not running at all). The sweeper command POSTs out to an operator-supplied heartbeat URL after every successful tick — a Healthchecks.io / Cronitor / Oh Dear / Sentry Crons / Better Stack ping endpoint. Configure the destination URL and the receiving SaaS alerts when posts go silent:

'scheduler' => [
    'heartbeat' => [
        'enabled' => true,
        'url' => env('QUEUE_INSIGHTS_SCHEDULER_HEARTBEAT_URL'),
    ],
],

Payload is a small JSON body (host_id, timestamp, tasks_swept); the sweeper times the request out at 5 s and logs a warning on failure rather than blocking. The host owns the receiving uptime monitor; the package owns the outbound POST.

Retention

Per-run records age out at scheduler.retention.run_ttl_seconds (default 7 d). The recent-runs index is capped at runs_index_max entries (default 10 000). Per-run job zsets (qi:sched:run-jobs:{runId}) are capped at run_jobs_max (default 5 000) so a fan-out task that dispatches a very large number of jobs cannot grow the index unbounded — oldest by score evicted first.

Testing

composer test

Runs the Pest suite via Orchestra Testbench. composer qa additionally runs Rector, Pint, and PHPStan.

Upgrading

See UPGRADING.md for migration steps between minor versions. Patch releases never require manual steps.

Changelog

See CHANGELOG.md and the GitHub releases page. The changelog is updated automatically on release publish — do not edit by hand.

Contributing

Issues and pull requests welcome at github.com/SanderMuller/laravel-queue-insights. Please run composer qa and composer test before opening a PR.

Security Vulnerabilities

Please review our security policy on how to report security vulnerabilities.

Credits

• Sander Muller
• All Contributors

License

MIT. See LICENSE.
