README

A WordPress plugin that generates taxonomy-filtered, hierarchical XML sitemaps with configurable time-based granularity (year / month / day) and a separate Terms mode for taxonomy archive sitemaps. Built for high-traffic publishers on WordPress VIP, with Action Scheduler–backed regeneration, a Memcached-safe XML cache, and a React-based admin UI.

Important

Best suited for WordPress VIP (or any environment with a reliable background job runner).

This plugin relies on Action Scheduler to regenerate sitemap XML asynchronously when content changes. Sitemap files are never built inline during a front-end request; they're written ahead of time by Action Scheduler workers and served from cached post meta.

If Action Scheduler isn't being driven by a real scheduler (WP VIP cron, a system cron hitting wp action-scheduler run, or equivalent), sitemap output will become stale or stop updating entirely. The default WP-Cron is best-effort and depends on front-end traffic; it works for low-volume sites but is not recommended for production.

See the Requirements section for setup details.

Screenshots

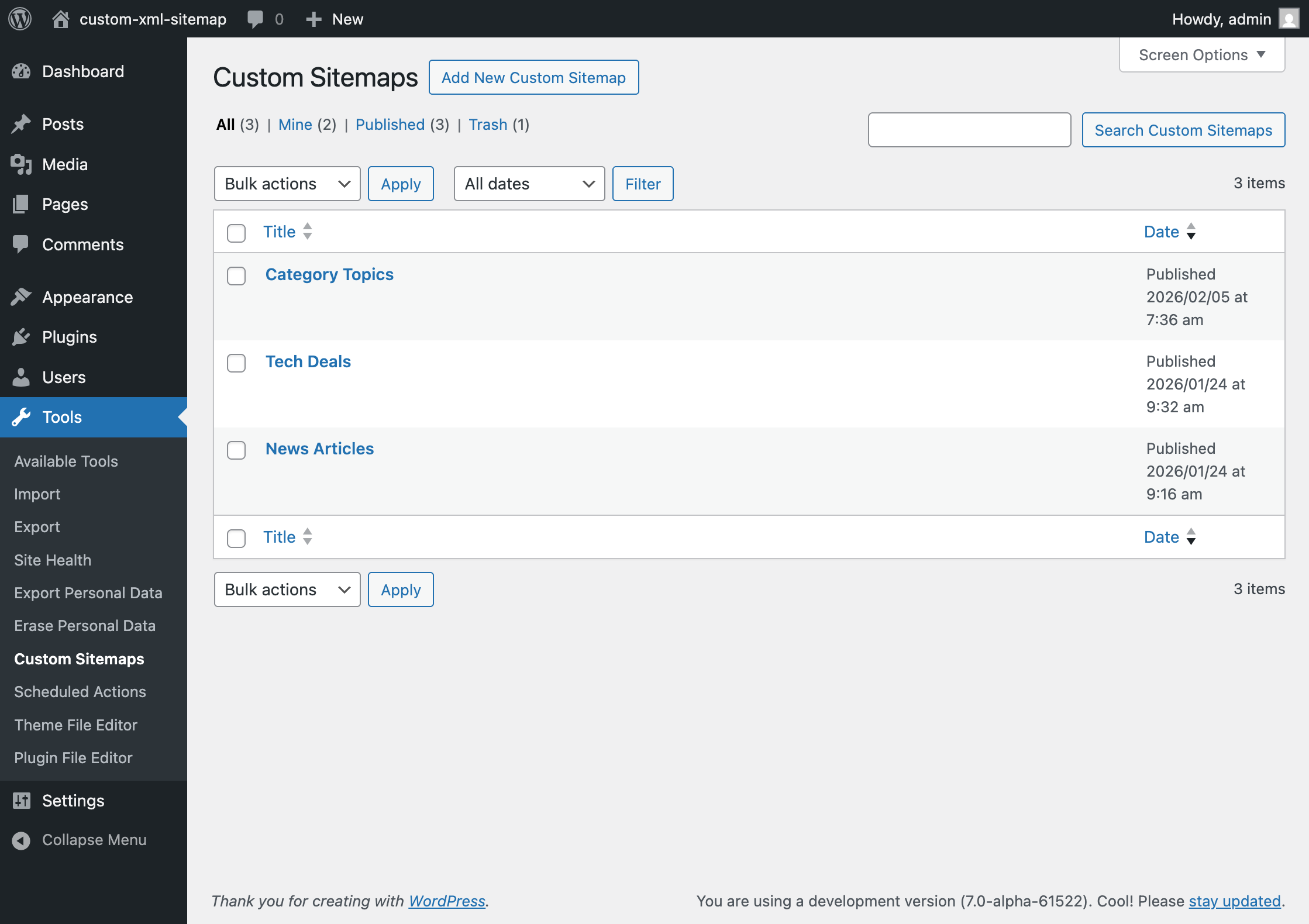

Sitemap list: all configured sitemaps at a glance

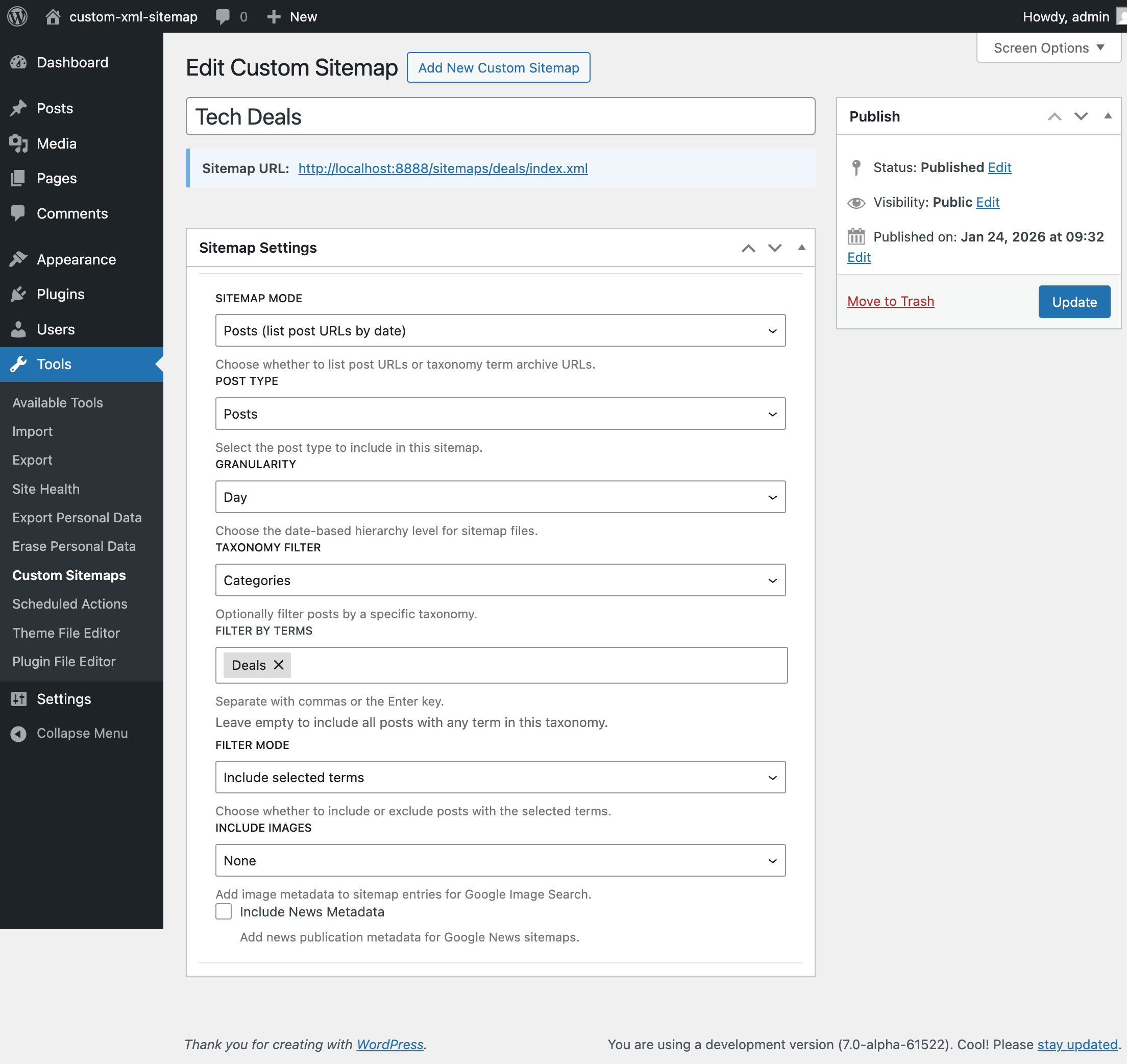

Sitemap editor: Posts mode with taxonomy filter and filter mode

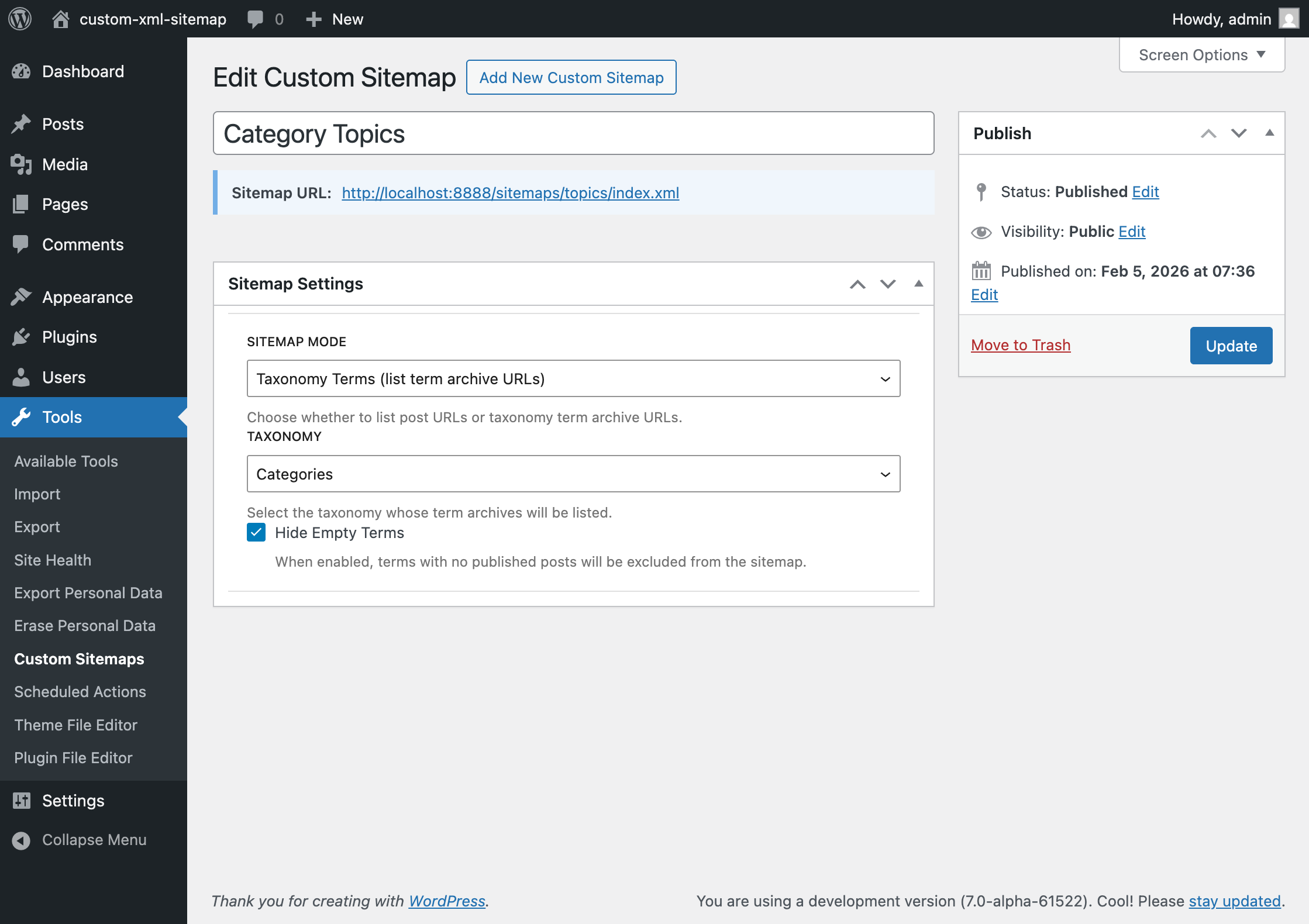

Sitemap editor: Terms mode for taxonomy archive sitemaps

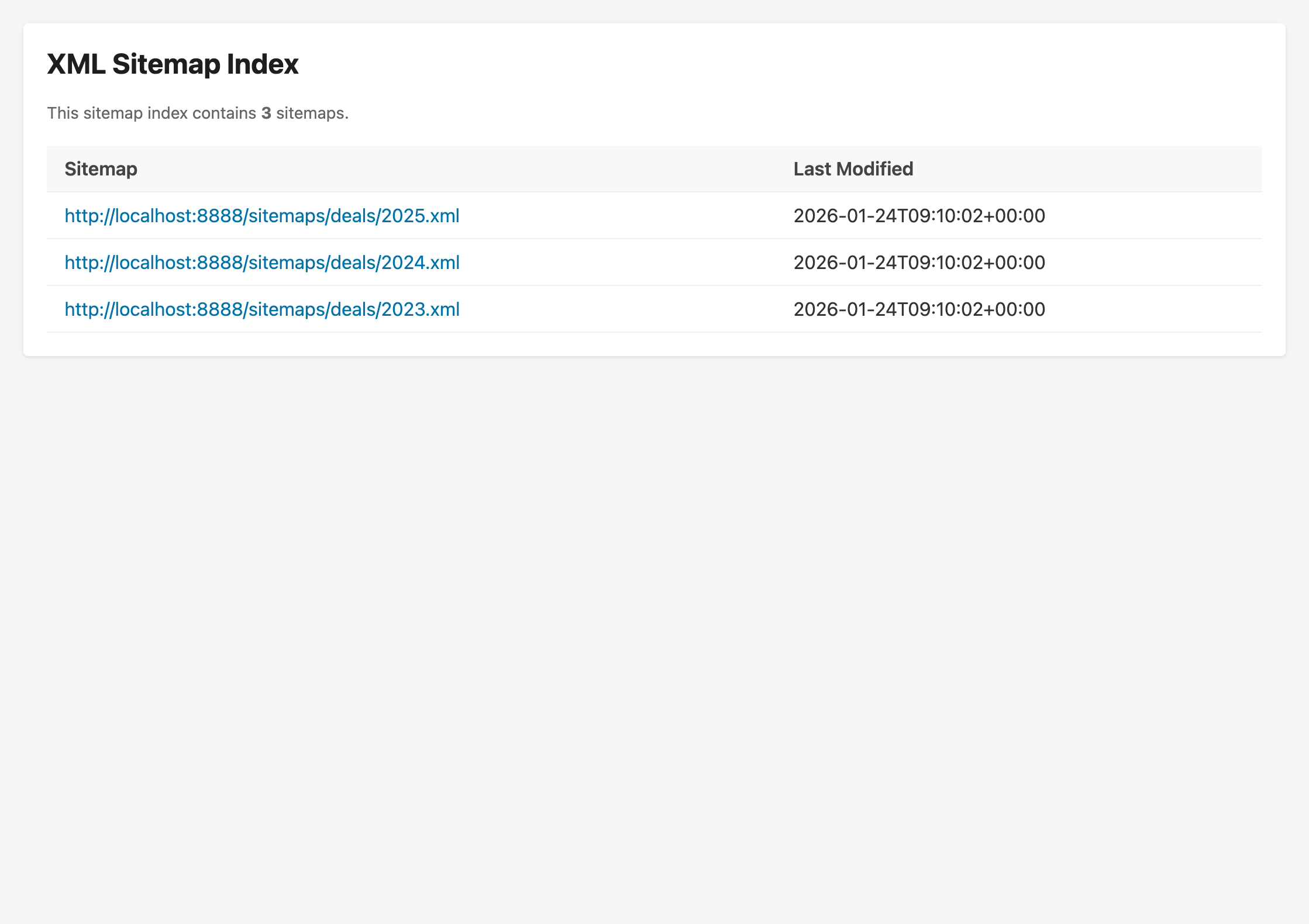

Rendered XML sitemap index (styled with XSL)

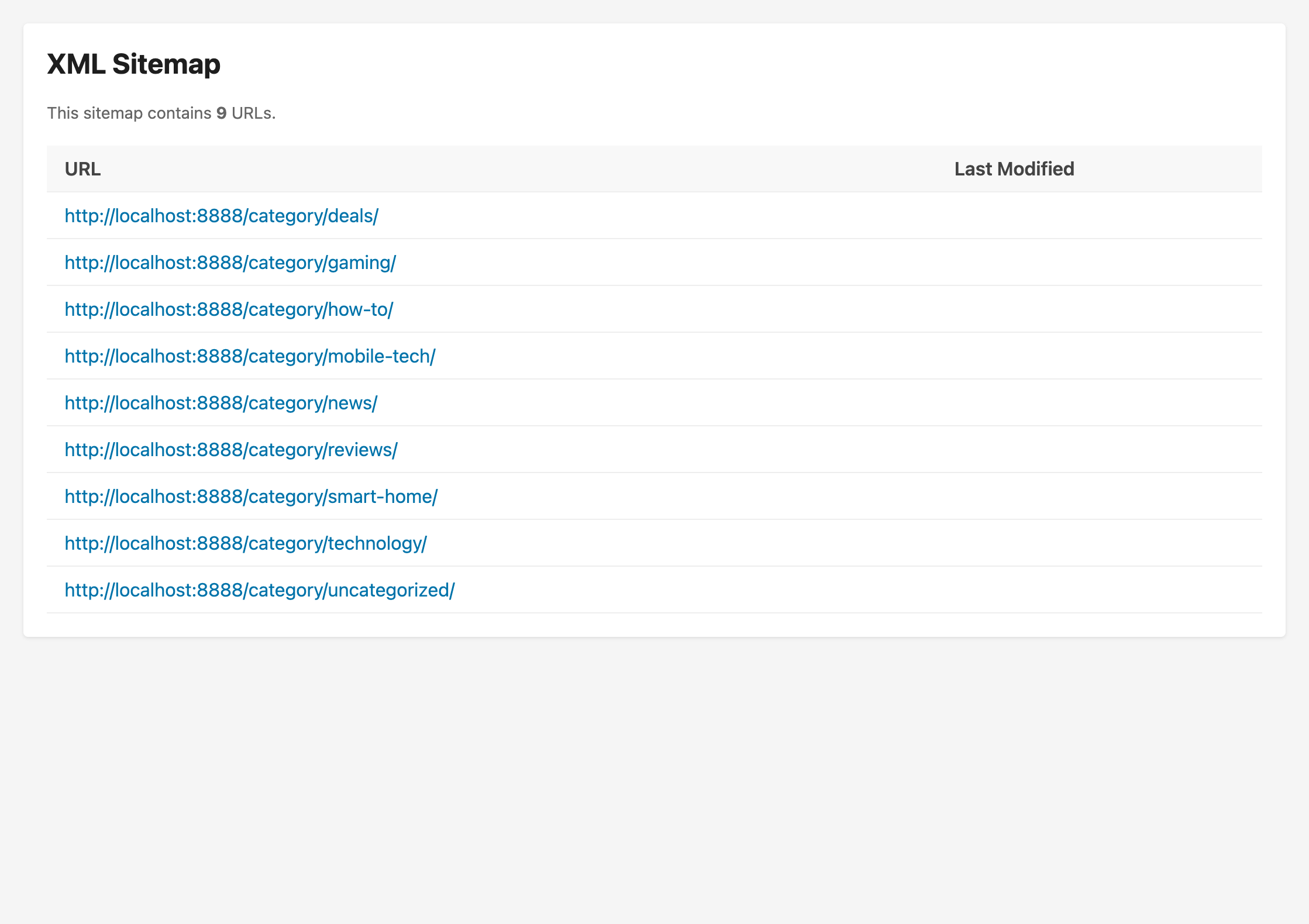

Terms sitemap output listing category archive URLs

How it Works

The plugin creates a custom post type for defining sitemap configurations. Each sitemap can target a specific post type, filter by taxonomy terms, and split content by year, month, or day granularity. Generated XML is cached and served via custom rewrite rules with XSL stylesheets for browser-friendly display.

Key features:

• Taxonomy Filtering - Filter sitemap content by categories, tags, or custom taxonomies
• Configurable Granularity - Split sitemaps by year, month, or day
• Hierarchical Structure - Index sitemap links to year sitemaps, which link to month/day sitemaps
• Auto-Regeneration - Automatic updates via Action Scheduler when content changes
• robots.txt Integration - Automatically adds sitemap references
• Image Sitemap Support - Include images in sitemap entries for Google Image Search
• News Sitemap Support - Add Google News publication metadata for news sitemaps

Sitemap Configuration

Each sitemap is configured via the Sitemap Settings metabox in the editor. The available fields depend on the selected mode.

Posts Mode

Field	Description
Post Type	The post type to include (e.g. Posts, Pages)
Granularity	Date hierarchy: Year, Month, or Day
Taxonomy Filter	Optionally restrict by a taxonomy (Categories, Tags, or custom)
Filter by Terms	One or more specific terms to match
Filter Mode	Include (only posts with selected terms) or Exclude (all posts except those with selected terms)
Include Images	None / Featured Image Only / All Images
Include News Metadata	Adds Google News <news:news> elements

Leave Filter by Terms empty to include all posts regardless of term assignment.

Image and News Sitemaps

Image Sitemaps

Enable image metadata in your sitemaps to help Google discover images on your pages. Three modes are available:

Mode	Description
None	No images included (default)
Featured Image Only	Include only the post's featured image
All Images	Include featured image + images from post content

When enabled, the sitemap includes <image:image> elements with <image:loc> for each image URL:

<url>
  <loc>https://example.com/post/</loc>
  <lastmod>2024-01-15T10:30:00+00:00</lastmod>
  <image:image>
    <image:loc>https://example.com/wp-content/uploads/photo.jpg</image:loc>
  </image:image>
</url>

Image extraction supports:

• Featured images
• Gutenberg core/image blocks
• Classic editor inline <img> tags
• Custom blocks via the cxs_extract_block_images filter

News Sitemaps

Enable news metadata for Google News sitemaps. When enabled, each URL entry includes publication details:

<url>
  <loc>https://example.com/breaking-news/</loc>
  <news:news>
    <news:publication>
      <news:name>Example Times</news:name>
      <news:language>en</news:language>
    </news:publication>
    <news:publication_date>2024-01-15T10:30:00+00:00</news:publication_date>
    <news:title>Breaking News Story</news:title>
    <news:keywords>Technology, Innovation</news:keywords>
  </news:news>
</url>

News metadata includes:

• Publication name - From site name (trailing parentheticals stripped per Google spec)
• Language code - ISO 639 format from WordPress locale
• Publication date - ISO 8601 format from post date
• Title - Post title
• Keywords - Categories and tags (excluding "Uncategorized")

Terms Mode (Taxonomy Archive Sitemaps)

In addition to post-based sitemaps, the plugin supports Terms Mode which generates sitemaps listing taxonomy term archive URLs (e.g., /topics/gaming/, /category/tech/) instead of individual post URLs.

When to Use Terms Mode

Terms mode is useful when you want search engines to index your taxonomy archive pages:

• Topic/category landing pages
• Tag archives with curated content
• Custom taxonomy term pages

Configuration

1. Create a new sitemap under Tools > Custom Sitemaps
2. Set Sitemap Mode to "Taxonomy Terms"
3. Select the Taxonomy to include (required)
4. Optionally enable Hide Empty Terms to exclude terms with no published posts

URL Structure

Terms mode sitemaps use a paginated structure:

URL Pattern	Description
/sitemaps/{slug}/index.xml	Index sitemap (for >1000 terms) or direct URL list
/sitemaps/{slug}/page-1.xml	First page of term URLs (1000 terms max per page)
/sitemaps/{slug}/page-2.xml	Second page, etc.

For taxonomies with 1000 or fewer terms, the index.xml contains all term URLs directly. For larger taxonomies, the index.xml becomes a sitemap index linking to paginated sitemaps.

Example Output

Index sitemap (small taxonomy):

<?xml version="1.0" encoding="UTF-8"?>
<urlset xmlns="http://www.sitemaps.org/schemas/sitemap/0.9">
  <url>
    <loc>https://example.com/topics/gaming/</loc>
  </url>
  <url>
    <loc>https://example.com/topics/technology/</loc>
  </url>
</urlset>

Index sitemap (large taxonomy with pagination):

<?xml version="1.0" encoding="UTF-8"?>
<sitemapindex xmlns="http://www.sitemaps.org/schemas/sitemap/0.9">
  <sitemap>
    <loc>https://example.com/sitemaps/topics/page-1.xml</loc>
  </sitemap>
  <sitemap>
    <loc>https://example.com/sitemaps/topics/page-2.xml</loc>
  </sitemap>
</sitemapindex>

Behavioral Notes

• Terms mode sitemaps do not include <lastmod> elements (term archives have no inherent modification date)
• Terms are ordered alphabetically by name
• Automatic regeneration is triggered when terms are created, edited, or deleted (with 5-minute debounce)
• Image and News options are not applicable in Terms mode

Requirements

• PHP 8.4+
• WordPress 6.0+
• Action Scheduler (bundled with the plugin via Composer)
• Pretty permalinks enabled

Action Scheduler must be running

All XML generation happens off-request, inside Action Scheduler jobs. The plugin schedules:

• A recurring job per published sitemap (regenerates the full set of buckets on a configurable cadence)
• On-change jobs triggered by post/term saves, deletes, and meta updates (with a 5-minute debounce per sitemap)

If Action Scheduler isn't being processed, none of those jobs run and the cached XML will go stale. The first request after activation will trigger a queue, but ongoing updates depend on a live worker.

WordPress VIP (recommended)

VIP runs Action Scheduler under its managed cron infrastructure. No additional setup is required; install, activate, configure sitemaps, and the platform handles the rest.

Self-hosted / non-VIP

You need to drive Action Scheduler explicitly. Pick one of:

• System cron (recommended for production): schedule a frequent CLI invocation:

  * * * * * cd /path/to/wordpress && wp action-scheduler run --batch-size=50 --batches=5 >/dev/null 2>&1

• Long-running worker: run continuously via a process supervisor (systemd, supervisord, etc.):

  wp action-scheduler run --batch-size=50 --batches=0

• WP-Cron (low-traffic sites only): works out of the box but only fires on front-end requests. Not recommended for production: a low-traffic site can lag arbitrarily, and a site that's entirely behind a cache may never trigger it. To use this, ensure DISABLE_WP_CRON is unset.

To verify the queue is being drained, watch Tools → Scheduled Actions in the WP admin or run wp action-scheduler status.

Installation

Via Composer (Recommended)

composer require xwp/custom-xml-sitemap

The plugin and its dependencies (Action Scheduler) will be installed automatically.

Manual Installation

1. Download the latest release zip from GitHub Releases
2. Upload the zip file via Plugins > Add New > Upload Plugin in WordPress admin
3. Activate the plugin through the 'Plugins' menu

From Source

# Clone the repository
git clone https://github.com/xwp/custom-xml-sitemap.git

# Install dependencies
cd custom-xml-sitemap
composer install
pnpm install

# Build assets
pnpm run build

Then copy the plugin folder to /wp-content/plugins/ and activate.

After Installation

Navigate to Tools > Custom Sitemaps in the WordPress admin to create your first sitemap.

Sitemap URLs

Once a sitemap is published, it's accessible at the following URLs.

Posts Mode (default):

/sitemaps/{slug}/index.xml              # Main index
/sitemaps/{slug}/{year}.xml             # Year index
/sitemaps/{slug}/{year}/{month}.xml     # Month sitemap (monthly granularity)
/sitemaps/{slug}/{year}/{month}/{day}.xml  # Day sitemap (daily granularity)

Terms Mode:

/sitemaps/{slug}/index.xml              # Index or direct URL list
/sitemaps/{slug}/page-{n}.xml           # Paginated term URLs (for large taxonomies)

WP-CLI Commands

List Sitemaps

wp cxs list [--format=<table|json|csv>]

Displays all configured sitemaps with columns: ID, Slug, Post Type, Taxonomy, Mode, Status, and URL Count.

Generate Sitemaps

wp cxs generate [<sitemap-slug>] [--all] [--year=<year>] [--dry-run]

Show Statistics

wp cxs stats [<sitemap-slug>] [--format=<table|json|csv>]

Validate Sitemaps

wp cxs validate <sitemap-slug> [--verbose]

Developer Hooks

cxs_sitemap_skip_post

Skip a post when emitting urlset entries. Return true to omit the post (and any image/news extensions) from the generated XML. Useful for excluding noindex posts, paywalled content, or posts that fail an external policy check.

add_filter( 'cxs_sitemap_skip_post', function( $skip, $post_id ) {
    if ( 'noindex' === get_post_meta( $post_id, 'robots_directive', true ) ) {
        return true;
    }
    return $skip;
}, 10, 2 );

Filtering happens at XML output time, not at the query level, so date-bucket counts and <lastmod> values in sitemap indexes may still reflect skipped posts. This is an intentional trade-off to avoid meta_query JOINs that hurt generation throughput.

cxs_extract_block_images

Extract images from custom Gutenberg blocks for image sitemaps.

add_filter( 'cxs_extract_block_images', function( $images, $block_name, $block, $post_id ) {
    if ( 'acme/gallery' === $block_name ) {
        // Extract images from custom gallery block
        $gallery_ids = $block['attrs']['imageIds'] ?? [];
        foreach ( $gallery_ids as $id ) {
            $url = wp_get_attachment_image_url( $id, 'full' );
            if ( $url ) {
                $images[] = [ 'url' => $url ];
            }
        }
    }
    return $images;
}, 10, 4 );

cxs_excluded_post_types

Remove post types from appearing in the sitemap Post Type dropdown.

add_filter( 'cxs_excluded_post_types', function( $excluded ) {
    $excluded[] = 'page';
    return $excluded;
} );

cxs_excluded_taxonomies

Remove taxonomies from the Taxonomy Filter and Terms Mode dropdowns.

add_filter( 'cxs_excluded_taxonomies', function( $excluded ) {
    $excluded[] = 'post_format';
    return $excluded;
} );

Local Development & Testing

Installation

composer install
pnpm install

Running Tests

# Start wp-env Docker environment
pnpm env:start

# Run PHPUnit tests
pnpm run test:php

# Run PHP Code Sniffer
composer lint

# Run PHPStan
composer phpstan

Build Assets

pnpm run build

License

GPLv2 or later.
